Installation Procedure

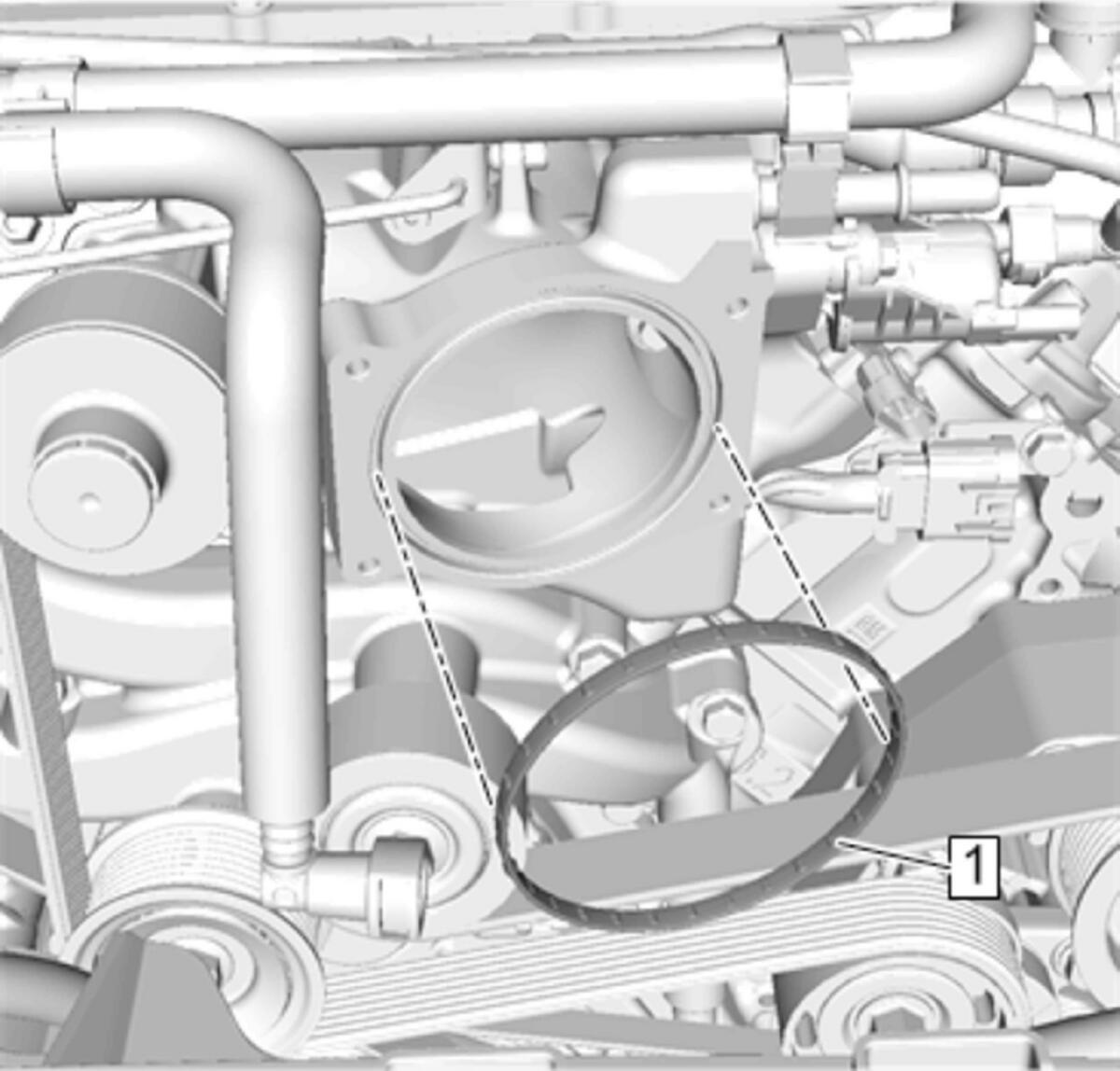

  1. GM4562757Courtesy of GENERAL MOTORS COMPANY

    Throttle Body Seal (1) - Install a NEW seal.

  2. If re-installing the throttle body and cleaning is required. Throttle Body Cleaning

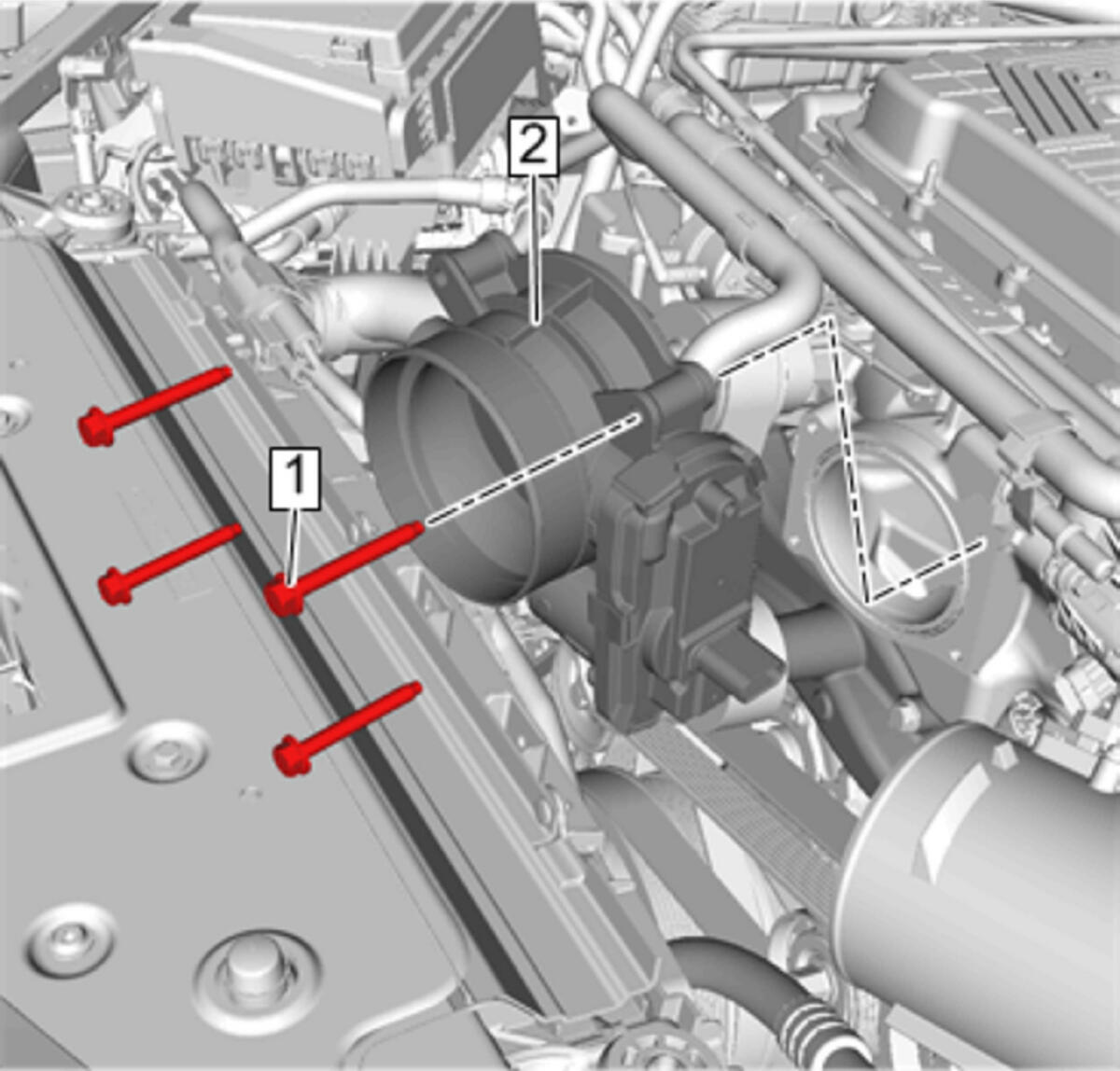

  3. GM4562747Courtesy of GENERAL MOTORS COMPANY

    Throttle Body (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Throttle Body Bolt (1) - Install and tighten [4x]10 N.m (89 lb in)

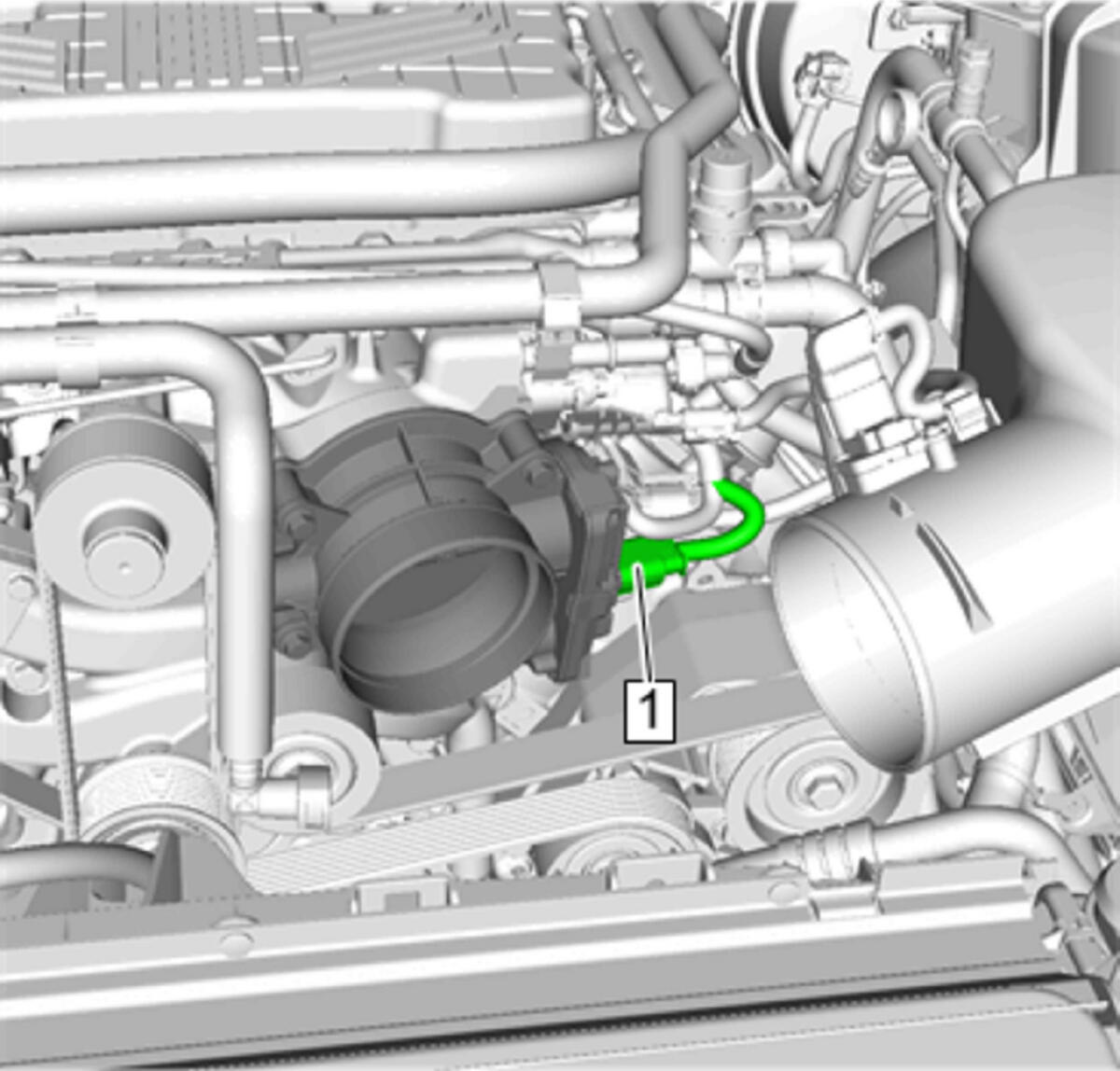

  5. GM4562723Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

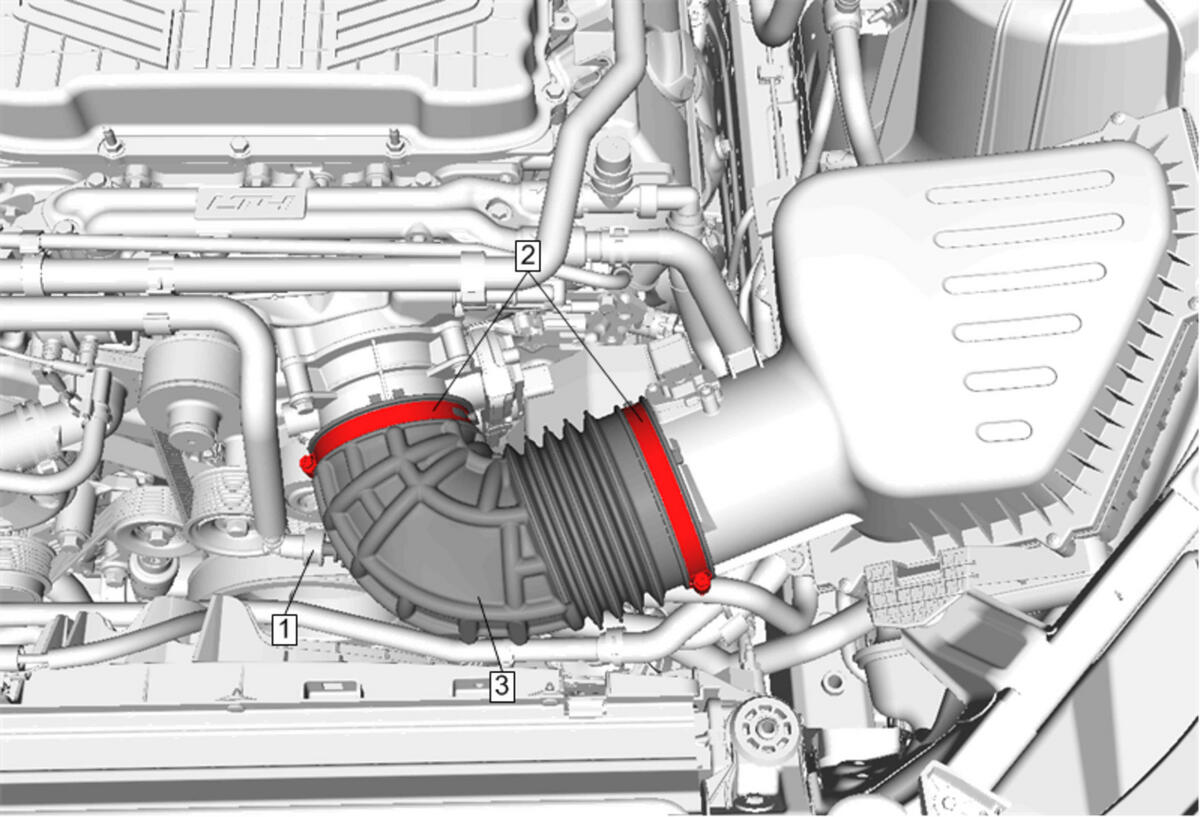

  6. GM4559870Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (3) - Install - Air Cleaner Outlet Duct Replacement (LT4)

  7. Perform the throttle learn procedure. Throttle Body Idle Air Flow Compensation Reset
