Remote Function Wiring Schematics

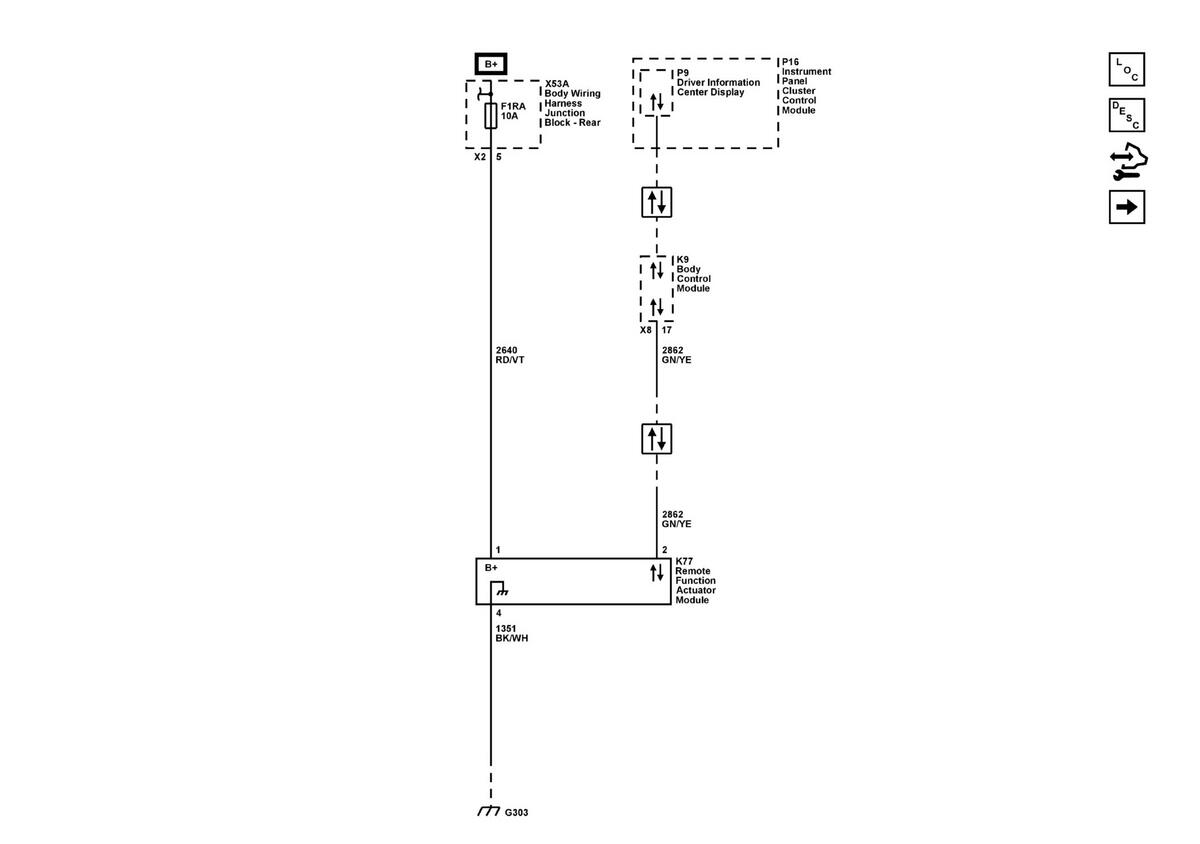

Fig 1: Keyless Entry - Active
GM5998454Courtesy of GENERAL MOTORS COMPANY

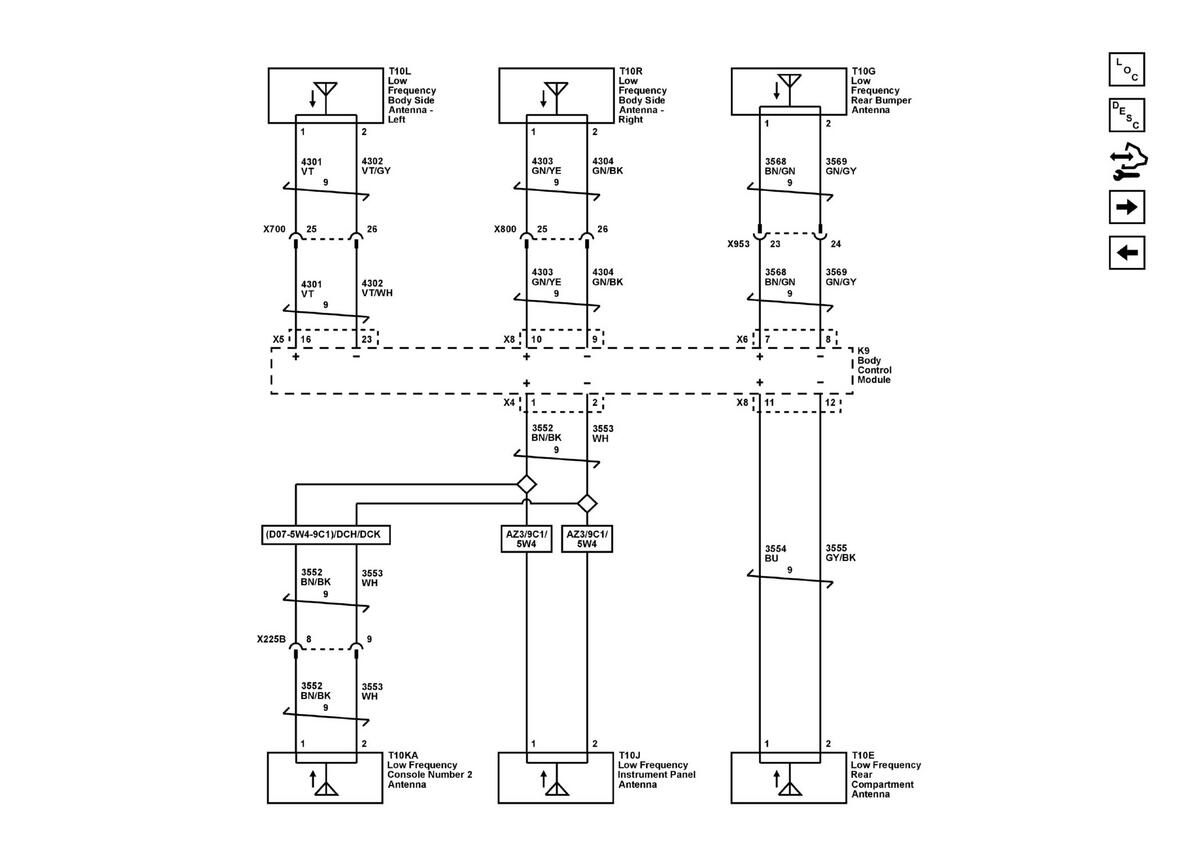

Fig 2: Keyless Entry - Passive and Keyless Start
GM5998455Courtesy of GENERAL MOTORS COMPANY

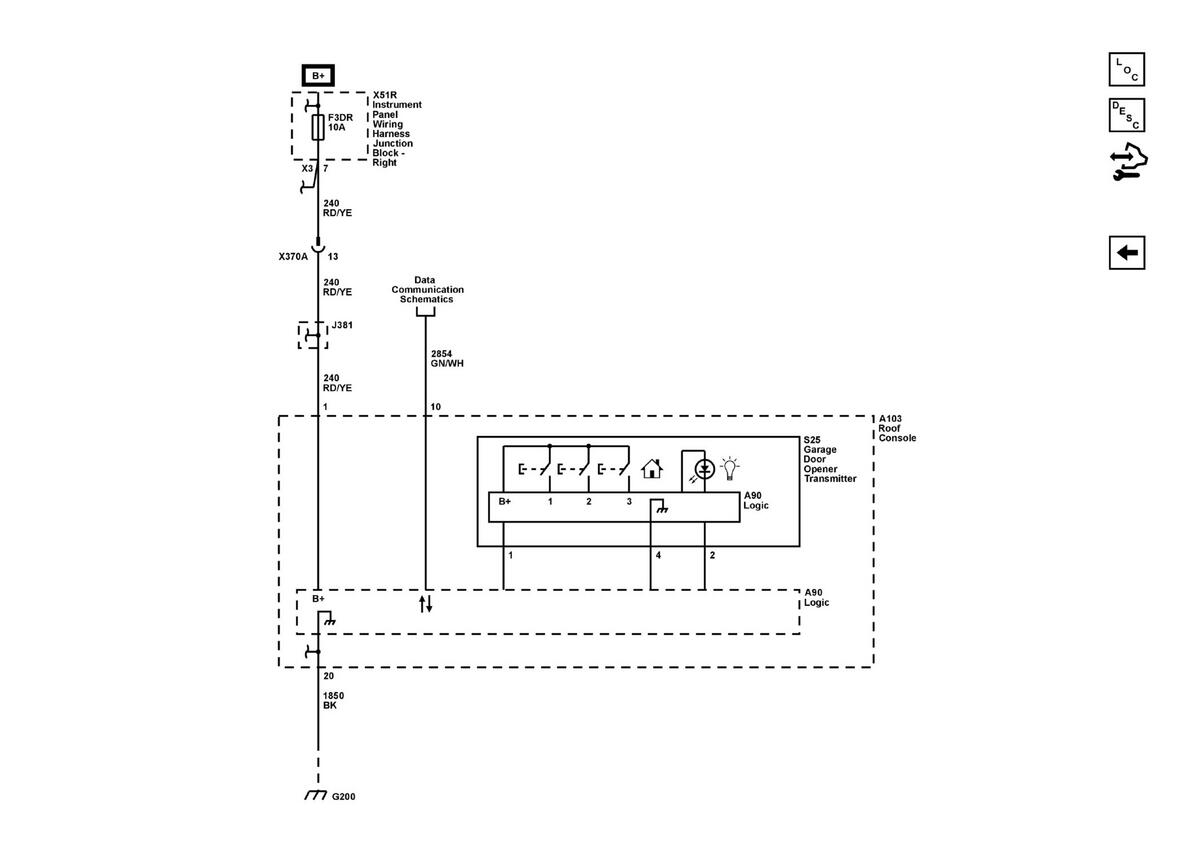

Fig 3: Garage Door Opener (UG1)
GM5998456Courtesy of GENERAL MOTORS COMPANY
