X50B Battery Distribution Engine Compartment Fuse Block X4
Connector Part Information
Harness Type: Body Wiring Harness
OEM Connector: 35085117
Service Connector: Service by Cable Assembly - See Part Catalog

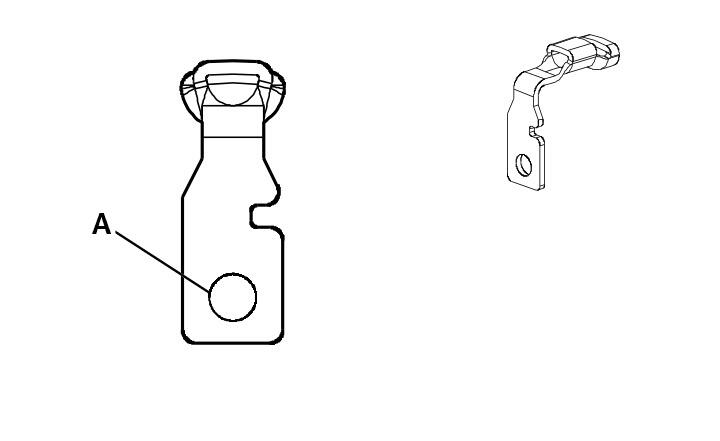

Description: 1-Way Ring Terminal
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | No Tool Required | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| A | 16 | RD/GY | 642 | Battery Positive Voltage | I | - |
