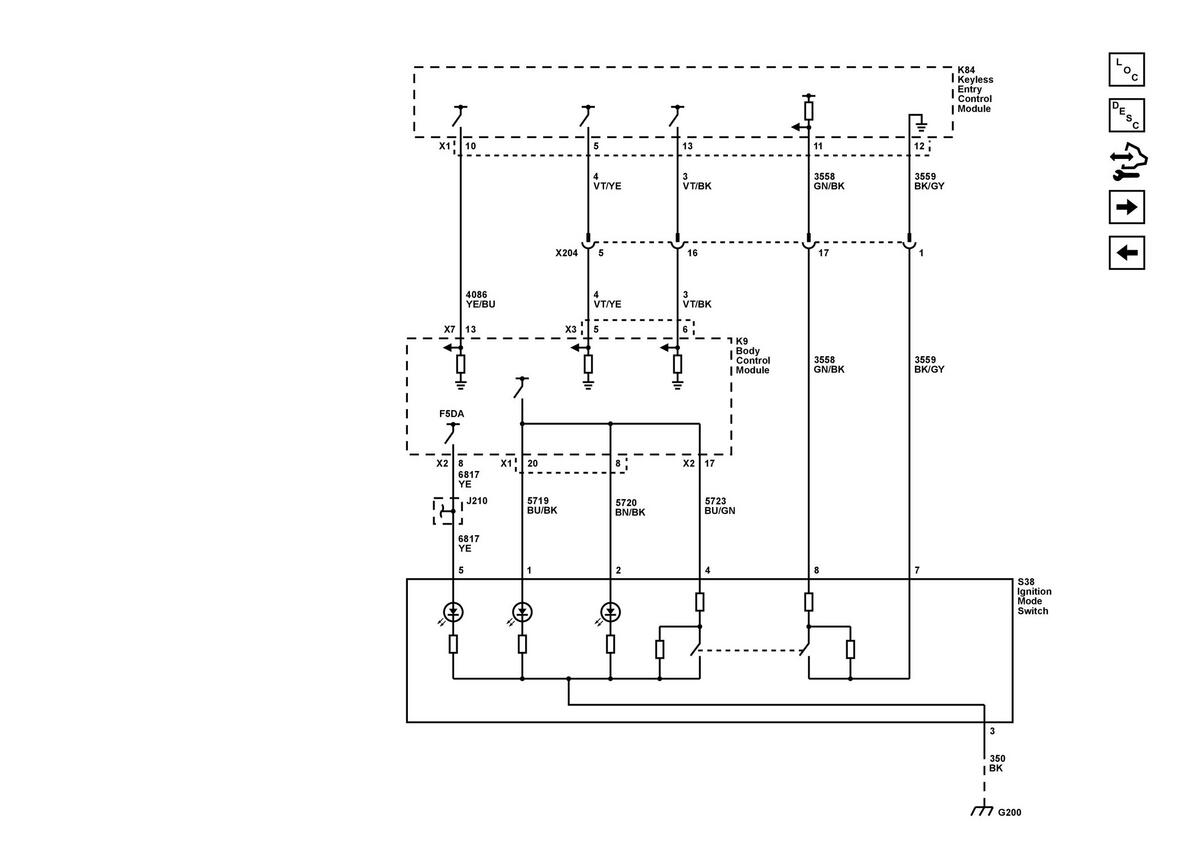

Home › Chevrolet › 2023 › Trailblazer RS, FWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Start (BTM)
