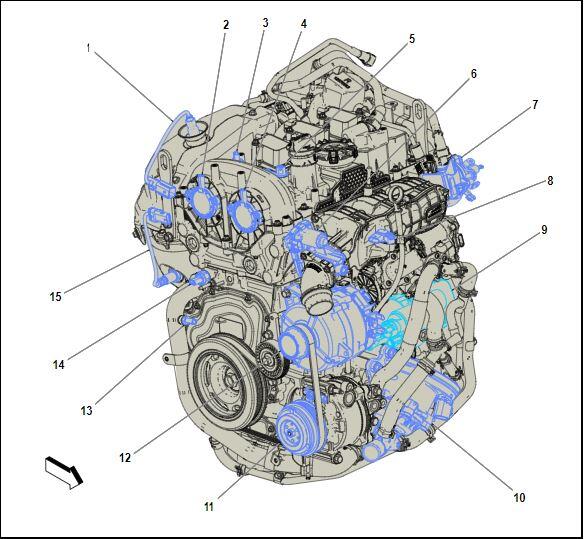

| (1) B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| (2) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (L3T) |
| (3) B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| (4) Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (L3T) |
| (5) B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| (6) Q38 Throttle Body Q38 Throttle Body |
| (7) G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump |
| (8) B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor |
| (9) M64 Starter Motor M64 Starter Motor X1 (L3T) |
| (10) G59 Engine Coolant Pump G59 Engine Coolant Pump |
| (11) Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| (12) G13 Generator G13 Generator X2 (L3T) |
| (13) B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2 (L3T) |
| (14) B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| (15) B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (L3T) |
