Installation Procedure

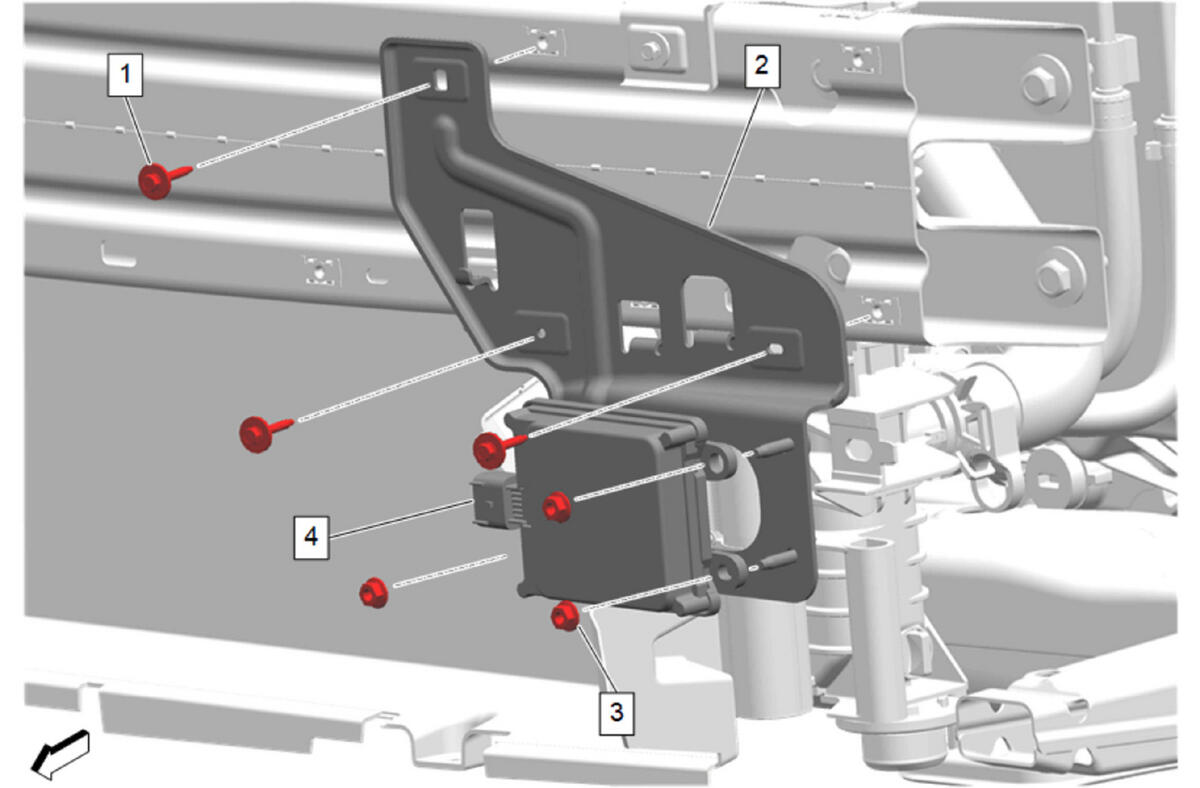

  1. GM6153154Courtesy of GENERAL MOTORS COMPANY

    Forward Range Radar Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Forward Range Radar Bracket Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
  3. Forward Range Radar Module (4) - Install
  4. Forward Range Radar Module Nut (3) - Install and tighten [3x] 9 N.m (80 lb in)
  5. Forward Range Radar Module Electrical Connector - Connect
  6. Front Bumper Fascia - Install - Front Bumper Fascia Replacement
