Installation Procedure

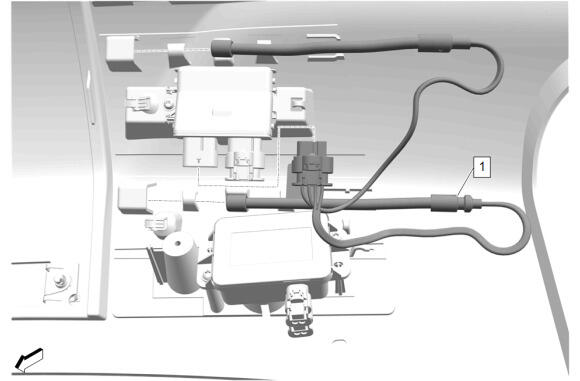

  1. GM6214841Courtesy of GENERAL MOTORS COMPANY

    Rear Closure Hands Free Sensor (1) - Install

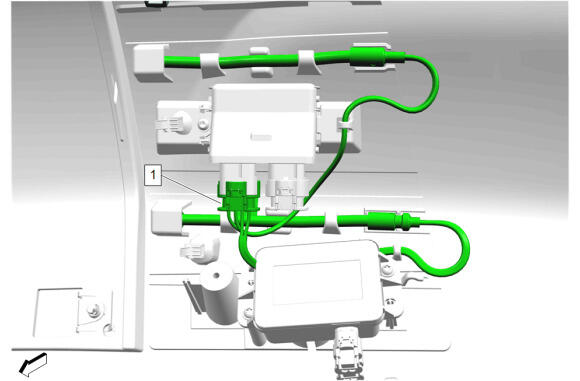

  2. GM6214833Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Rear Closure Hands Free Module - Connect

  3. Rear Bumper Fascia Energy Absorber - Install - Rear Bumper Fascia Energy Absorber Replacement
