Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

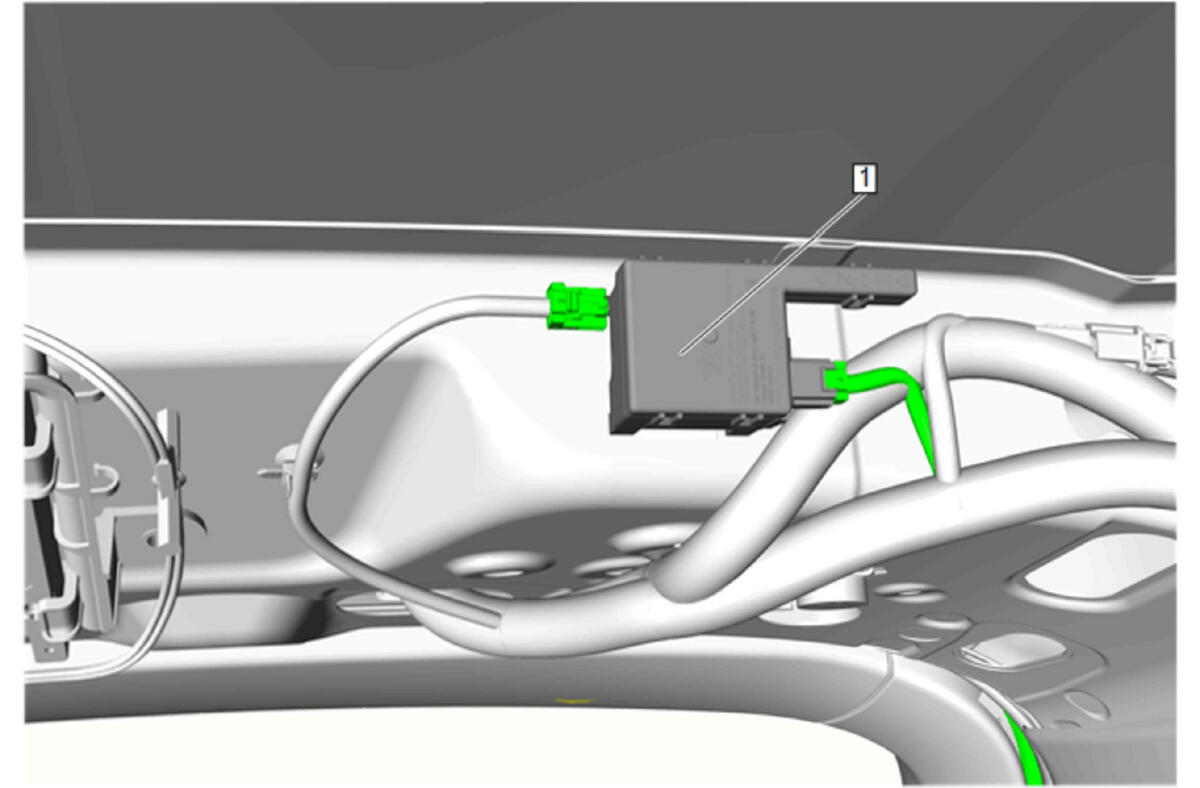

Remote Function Actuator Module (1) - Install
Ensure that the retaining tabs are fully secured.
Connect the electrical connectors.
Headlining Trim Panel - Install - Headlining Trim Panel Replacement (CAJ) , or Headlining Trim Panel Replacement (- CAJ)
Enable the SIR System. SIR Disabling and Enabling
