Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Windshield (1) - Install - Adhesive Installation of Windshields
With an assistant, install the locator pins (2) and the windshield (1) in the opening.
Courtesy of GENERAL MOTORS COMPANY

Clean the inside of the windshield before installing the front view driver information camera bracket (1).
Front View Driver Information Camera Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front View Camera (1) - Install
Slide the front view camera (1) downward to engage.
Secure the retaining tab.
Prior to the installation of the of the windshield outside moisture/ambient light and humidity sensor, clean the windshield surface and sensor bracket with an Isopropanol Alcohol, wipe until the surfaces are thoroughly clean.
Courtesy of GENERAL MOTORS COMPANY

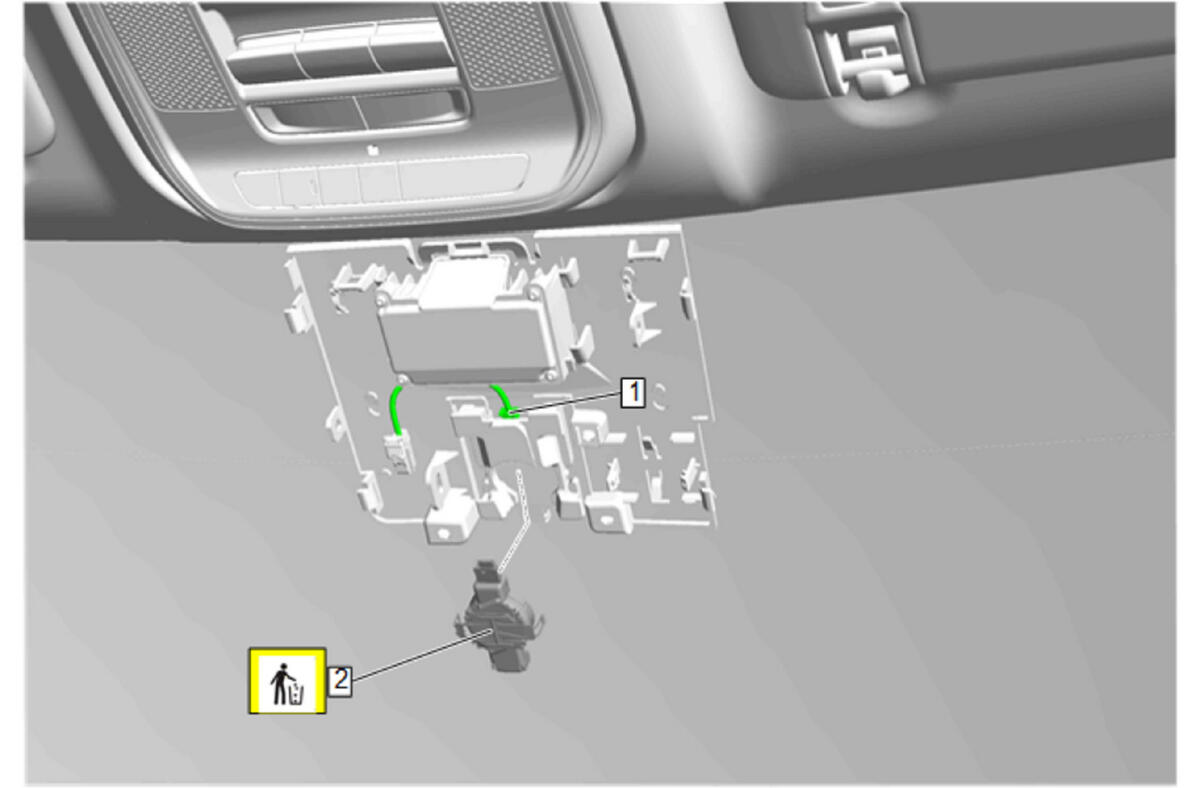

Windshield Outside Moisture/Ambient Light and Humidity Sensor (2) - Install NEW
Connect the headlamp automatic control ambient light sensor wiring harness connector (1) from the windshield outside moisture/ambient light and humidity sensor (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Slide the inside rearview mirror onto the mirror mount.

Inside Rearview Mirror (2) - Install

CAUTION:

Refer to Fastener Caution .

Inside Rearview Mirror Bolt (1) - Install and tighten - Fastener Specifications
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

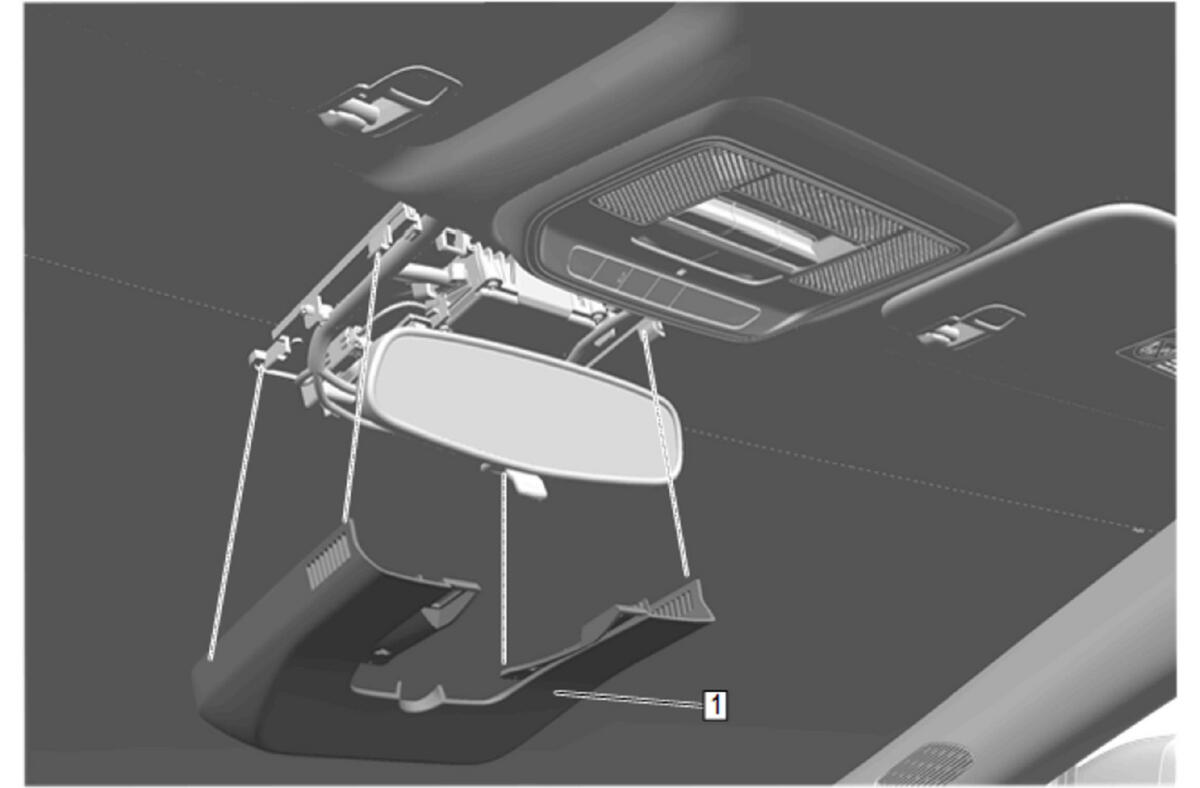

Windshield Multifunction Sensor Mount Bracket Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

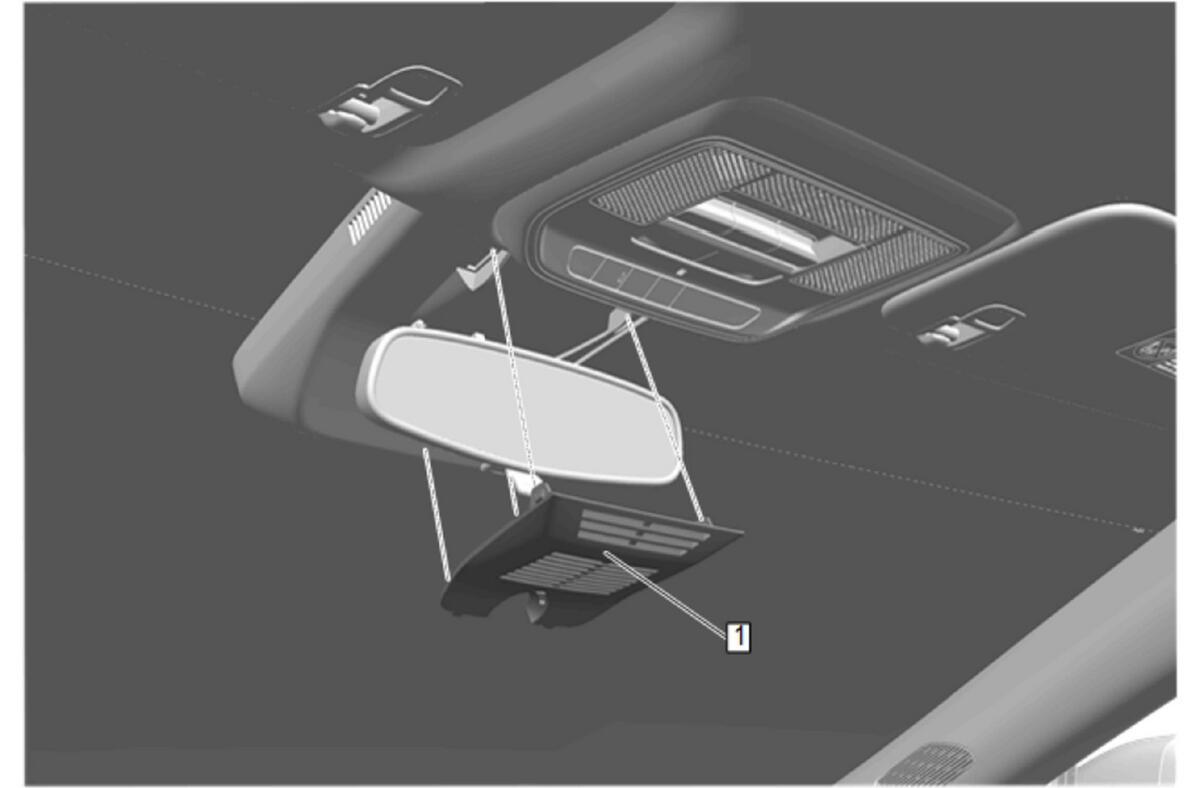

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Apply pressure upward on the windshield multifunction sensor mount bracket cover insert (1) to engage the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Air Inlet Grille Panel (2) - Install
Windshield Washer Nozzle Hose @ - Connect
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Center Sight Shield (2) - Install
Front Compartment Center Sight Shield Retainer (1) - Install [8x]
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield- Inner- Left Side and Right Side (2) - Install [2x]
Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [16x]
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield- Outer- Left Side and Right Side (2) - Install [2x]
Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Sight Shield (2) - Install
Front Compartment Front Sight Shield Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Some components not shown for graphic clarity.
Clean the windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
Position the windshield wiper arms (3) on the windshield wiper transmission pivot shafts.
Windshield Wiper Arm Nut- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
Windshield Wiper Arm Finish Cap- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

If required, realign the windshield wipers to their respective alignment circles (1) on the windshield.
Lubricate the windshield with clean washer fluid.
Run the windshield wipers for two complete cycles then turn off the windshield wipers.
Ensure the windshield wipers are in the full park position.
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Some components not shown for graphic clarity.

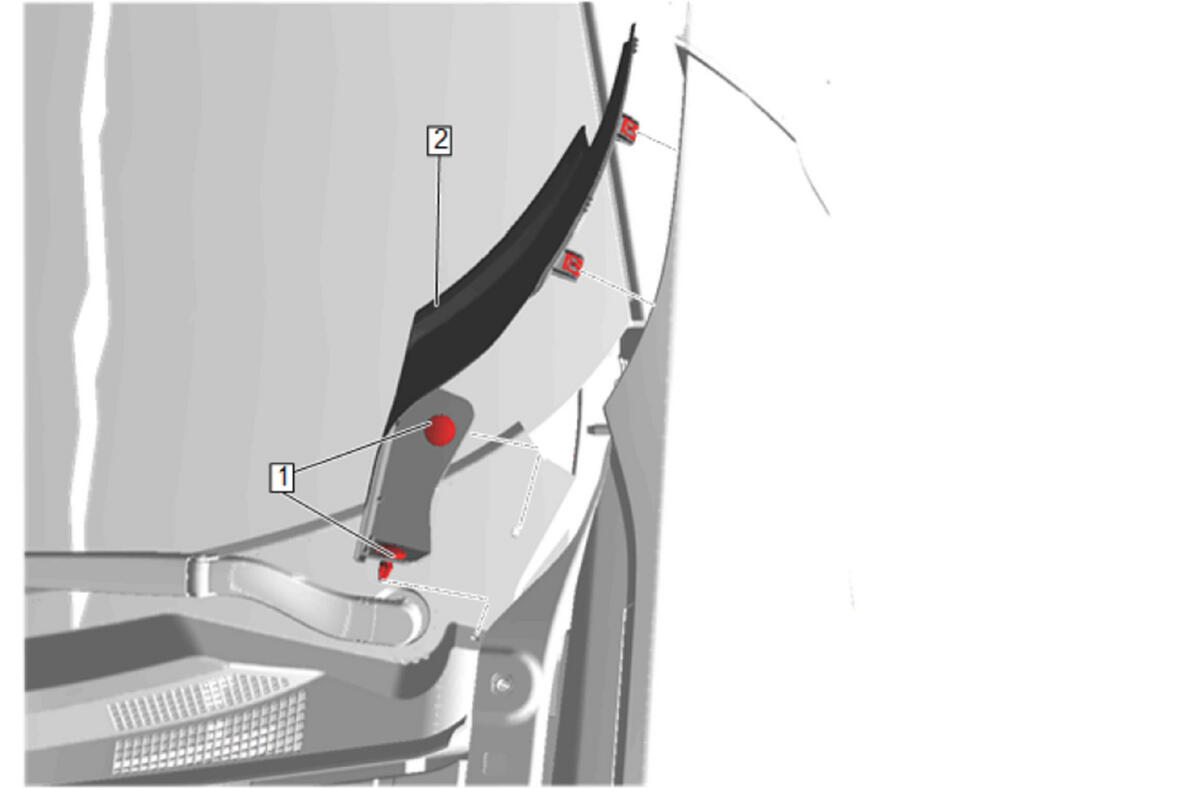

Air Inlet Grille Panel Extension- Left Side and Right Side (2) - Install [2x]
Enable the SIR System. SIR Disabling and Enabling
Perform the camera calibration procedure. Front View Camera - Windshield Learn
