Fastener Specifications

GM5982611Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

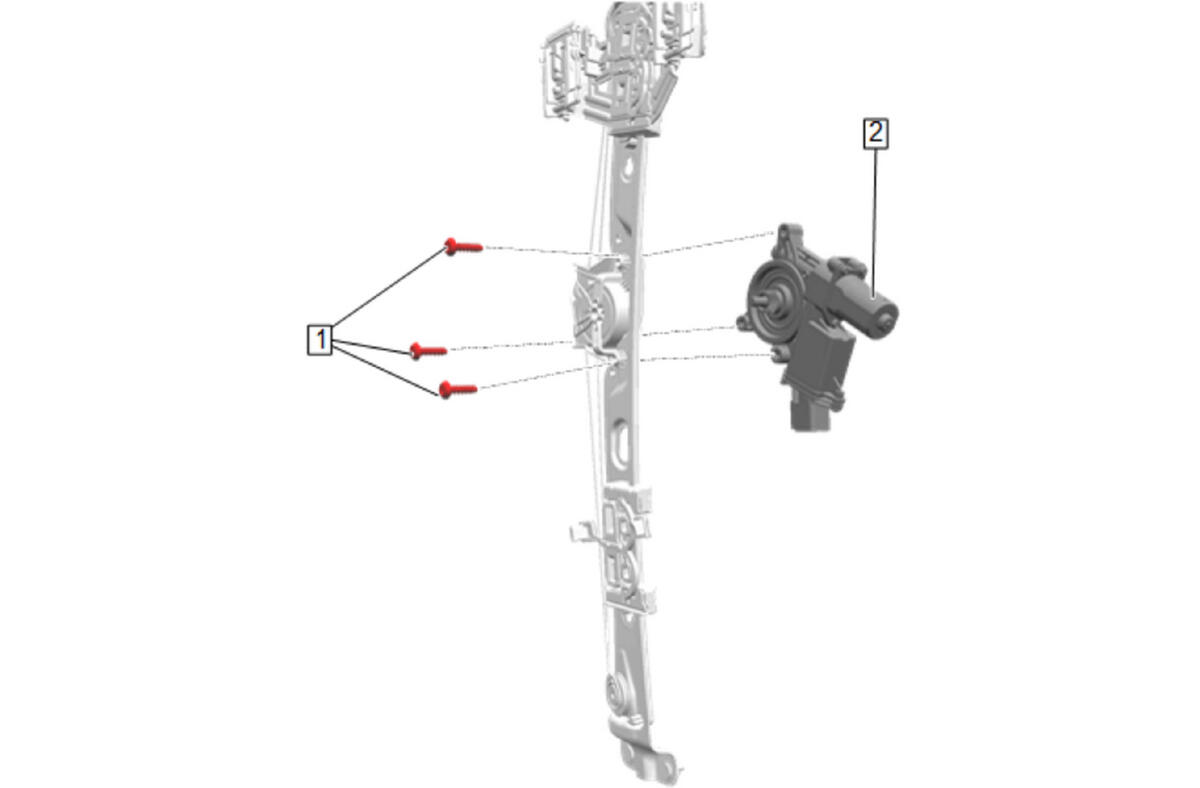

GM6266379Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 4.5 N.m (40 lb in) Front Side Door Window Regulator Motor Replacement

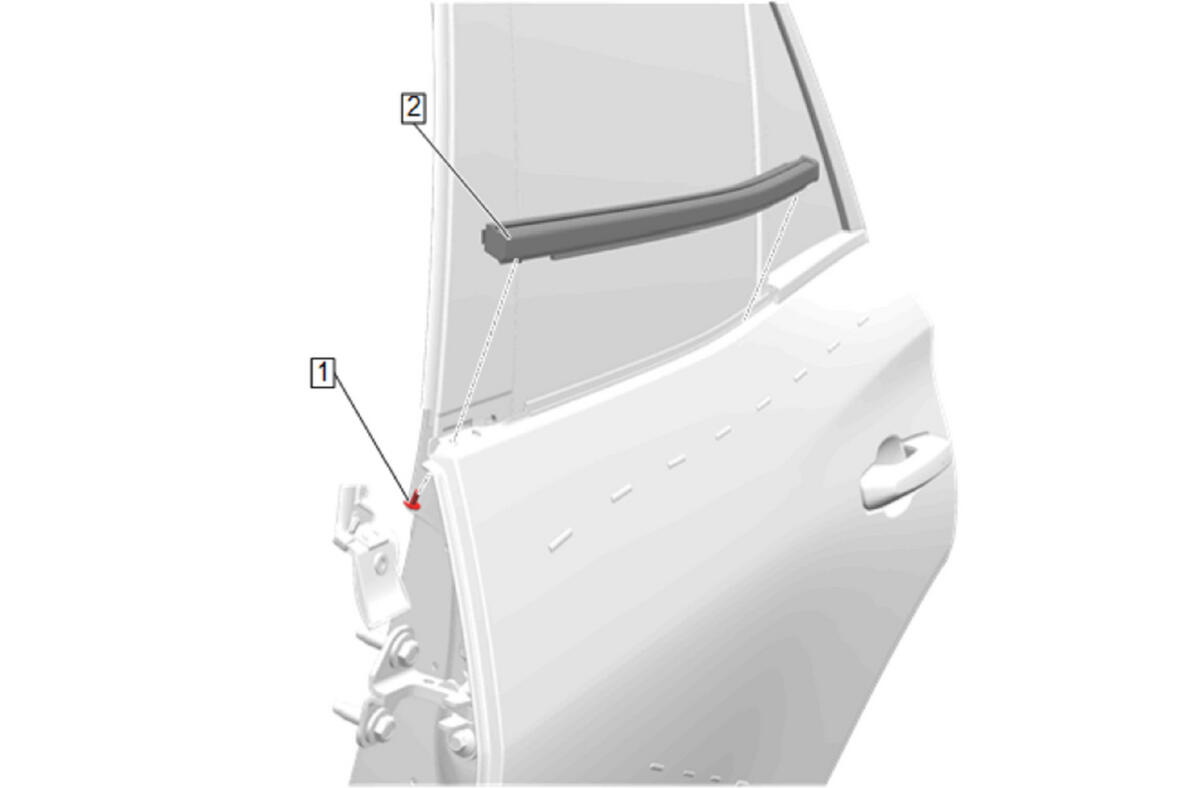

GM6264730Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

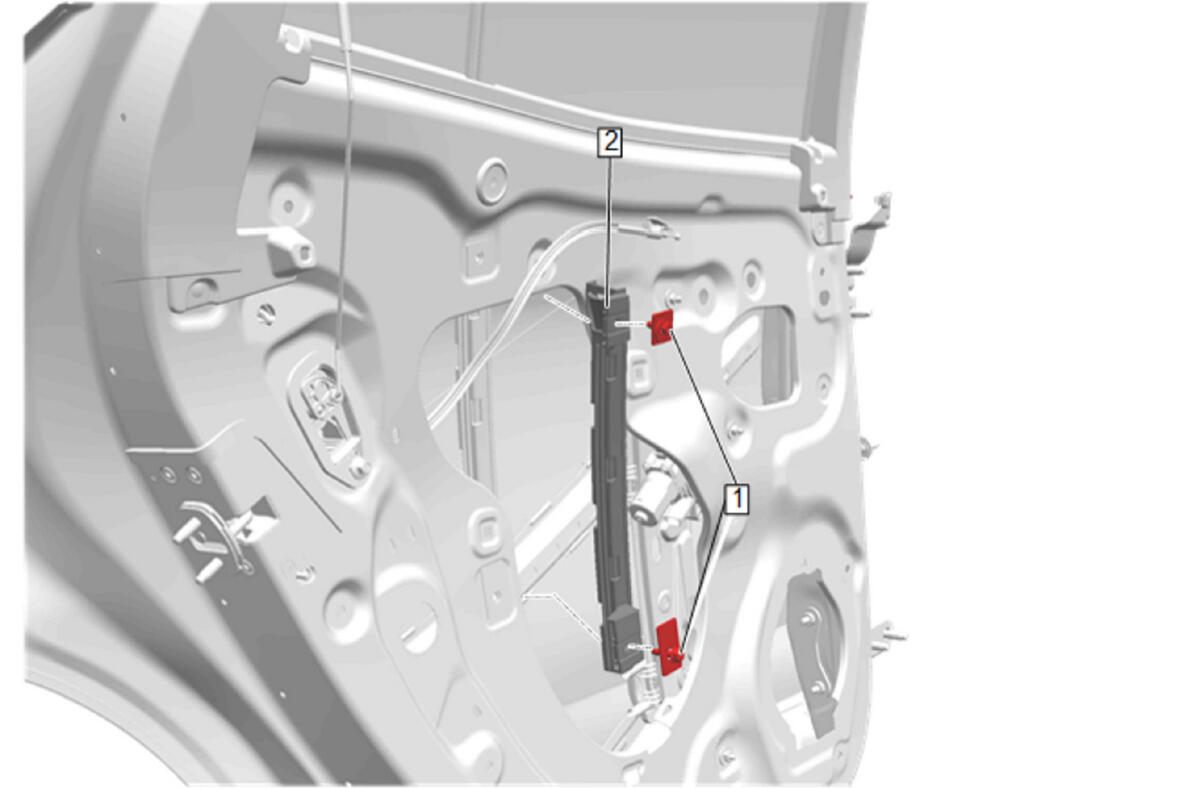

GM6264738Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Rear Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

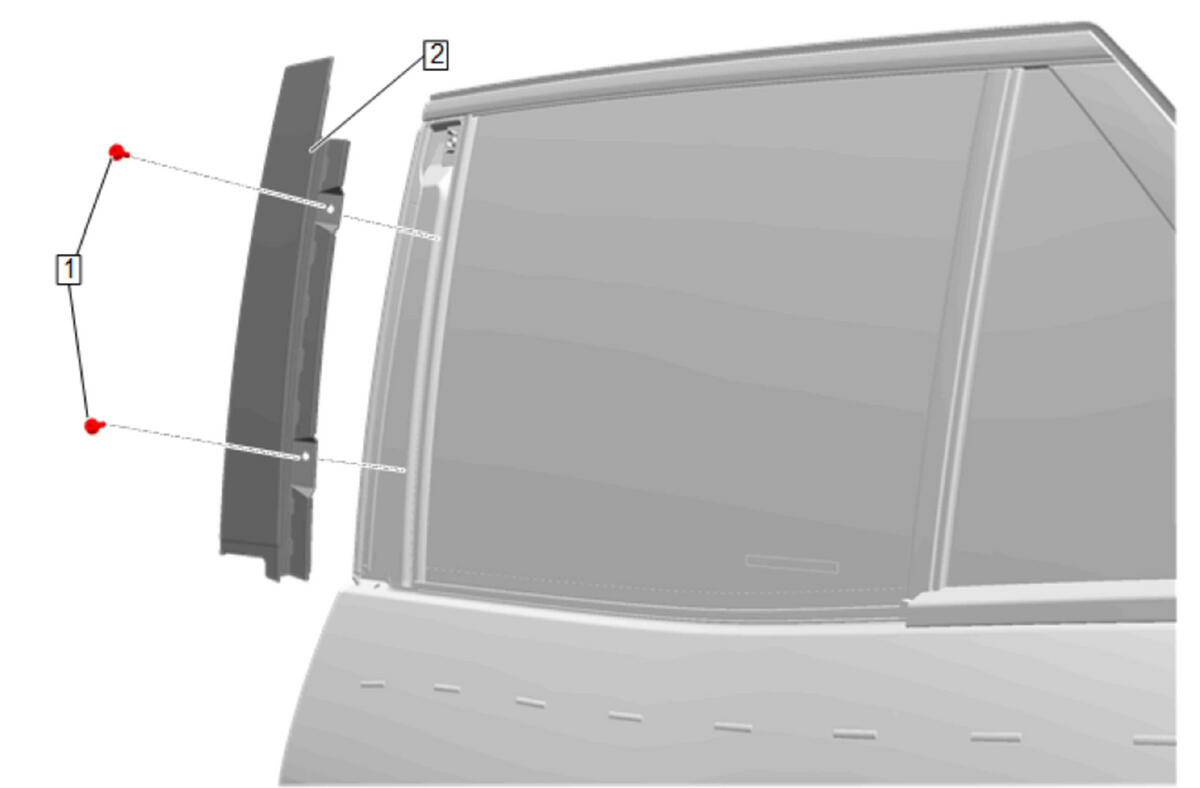

GM6266361Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Window Frame Front Applique Replacement
GM5551368Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] - - 4.5 N.m (40 lb in) Rear Side Door Window Regulator Motor Replacement

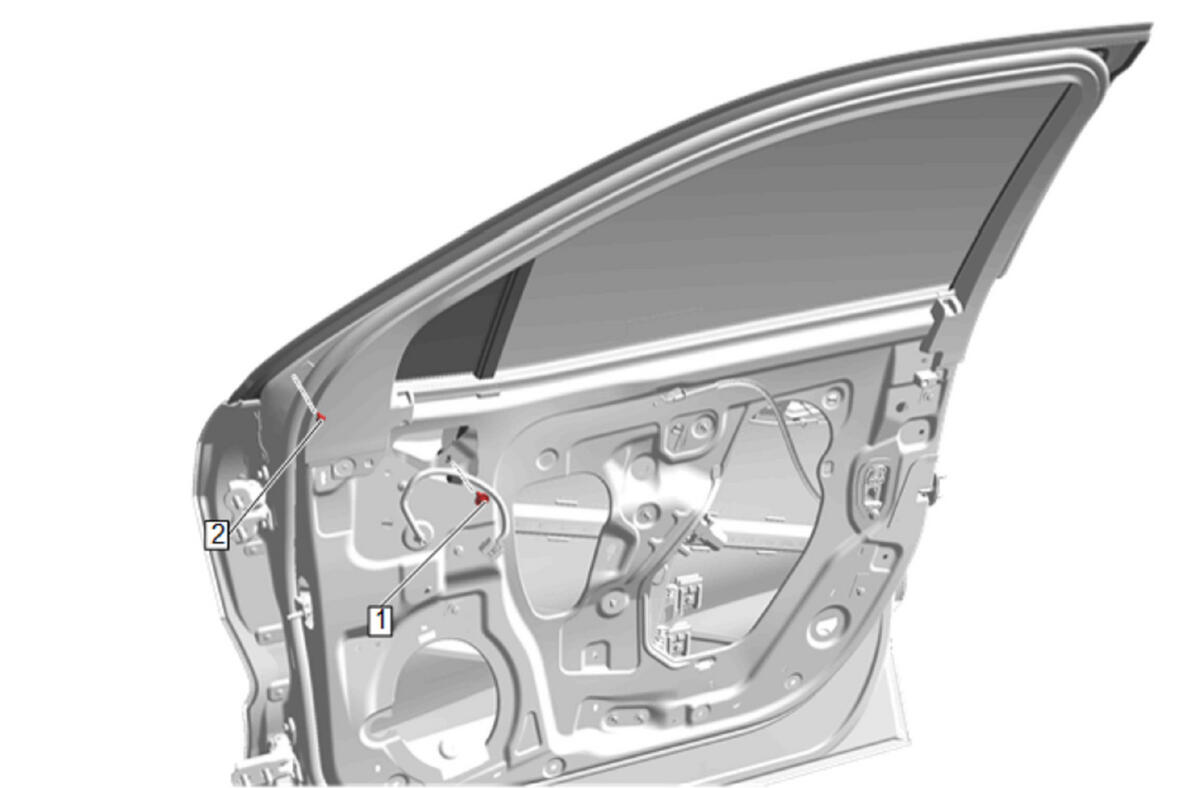

GM6267507Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Weatherstrip Bolt - - 11 N.m (97 lb in) Front Side Door Window Weatherstrip Replacement
2 Front Side Door Window Weatherstrip screw - - 2.5 N.m (22 lb in) Front Side Door Window Weatherstrip Replacement

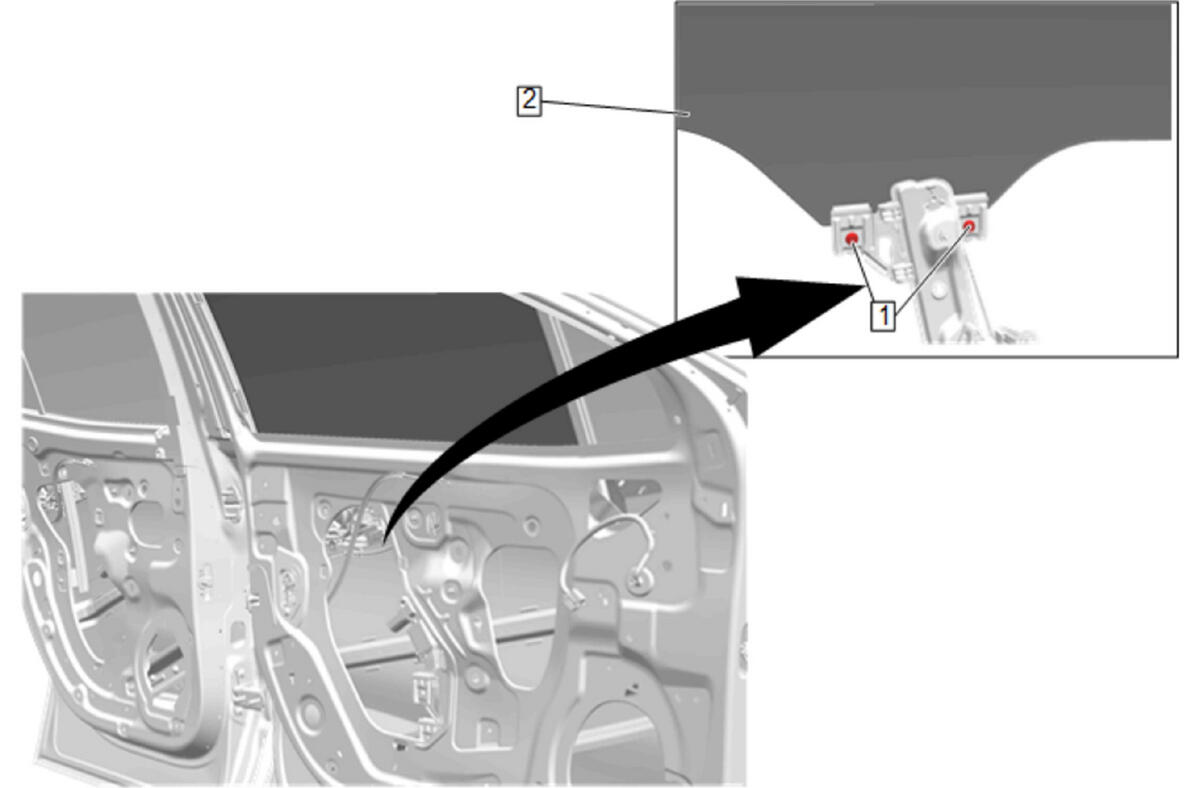

GM6262104Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Sash Retainer [4x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

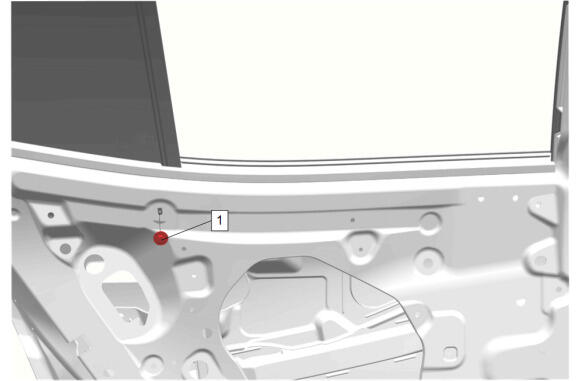

GM6403162Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - - 11 N.m (8 lb ft) Rear Side Door Window Weatherstrip Replacement
