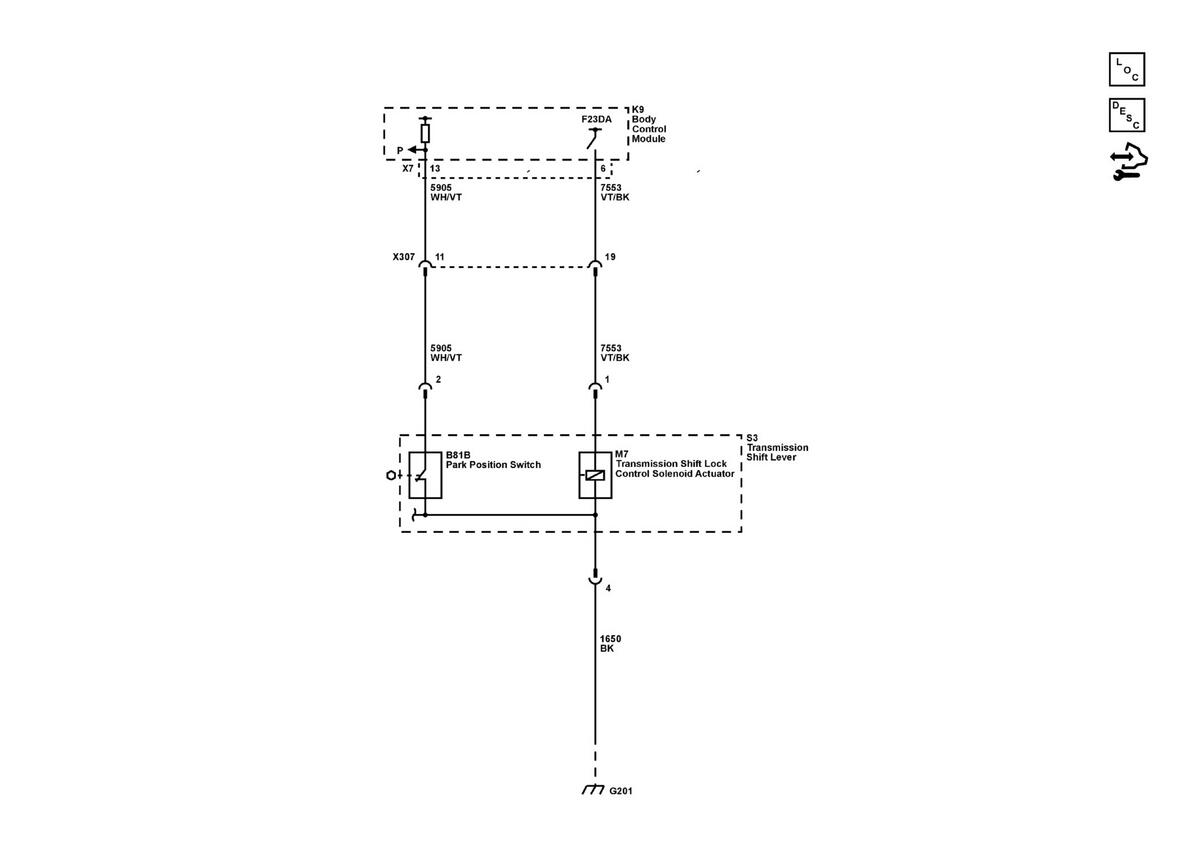

Home › Chevrolet › 2024 › Blazer RS, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
