Engine Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

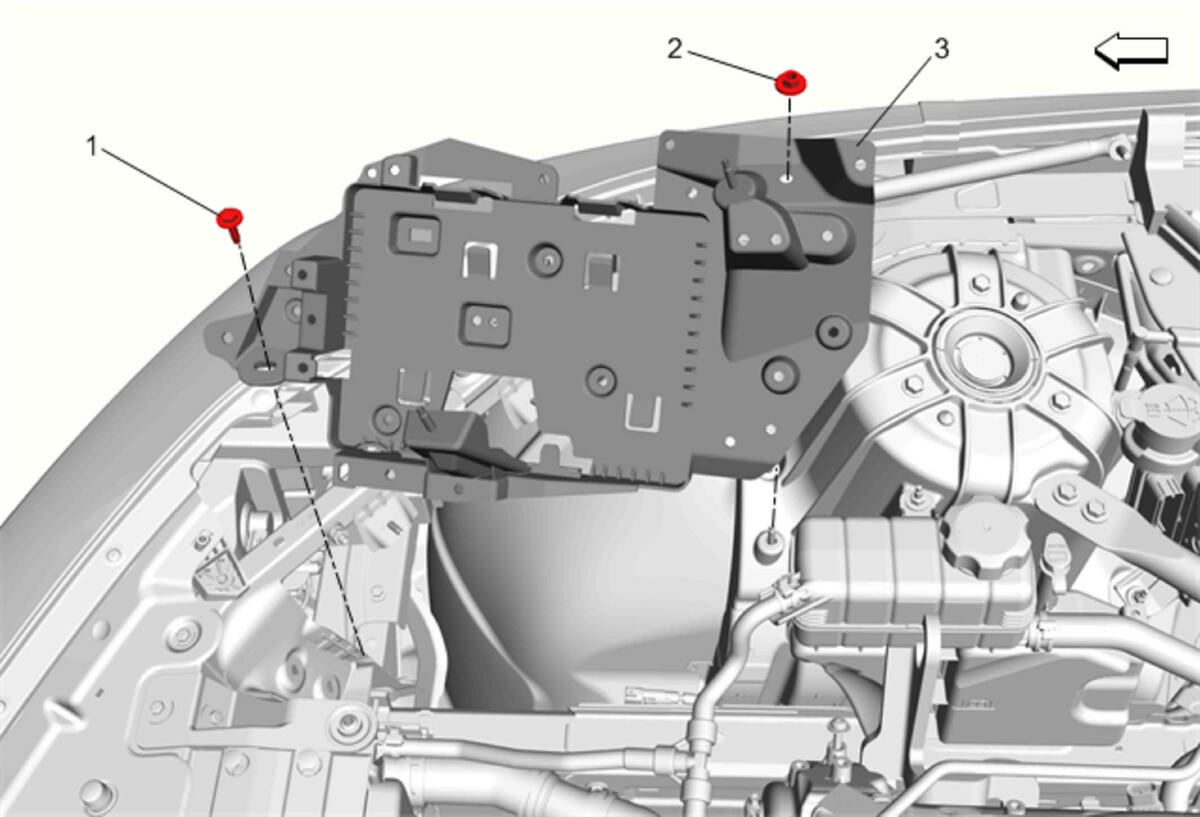

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Front Wheelhouse Liner - Right Side - Remove - Front Wheelhouse Liner Replacement Disconnect the wiring harness retainers on top and bottom side of engine control module bracket.
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Control Module Bracket Nut Tighten 9 N.m (80 lb in)
3	Engine Control Module Bracket
