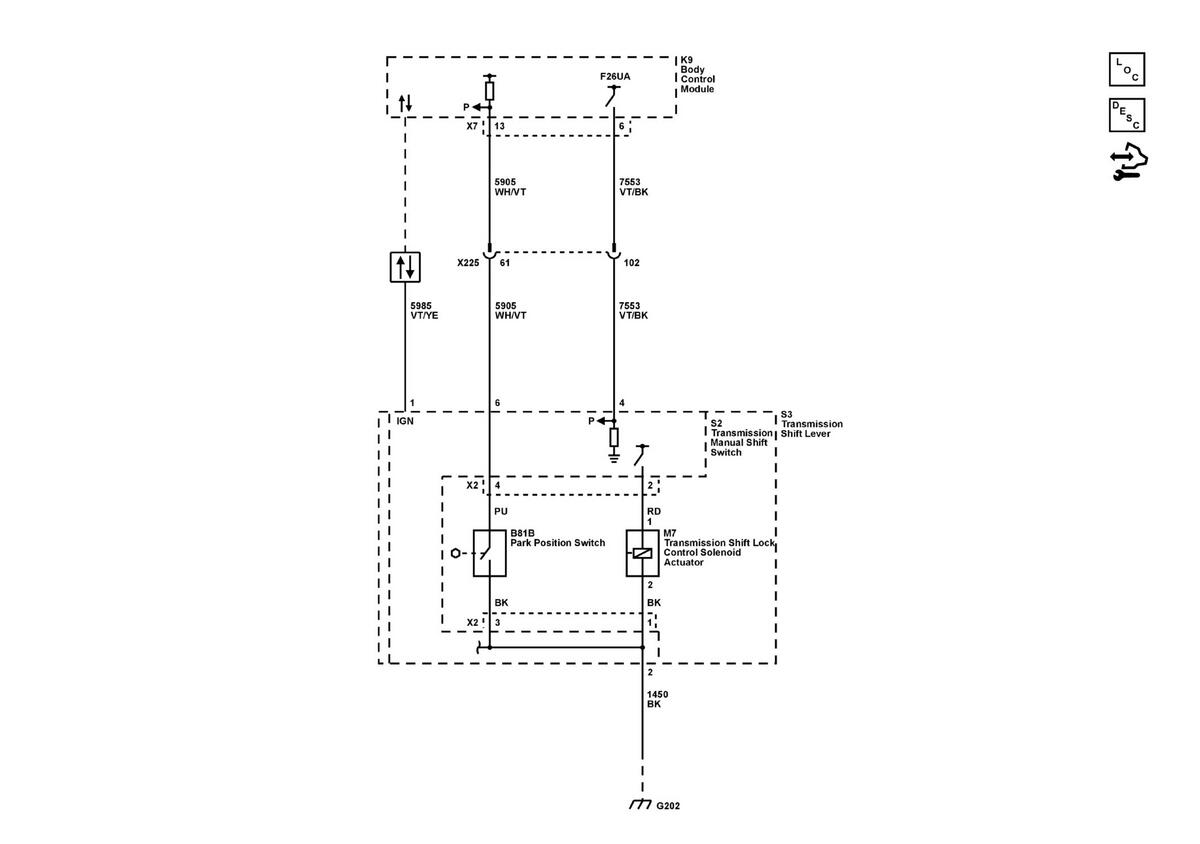

Home › Chevrolet › 2024 › Camaro SS, 2D Convertible, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic and Routing Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
