Installation Procedure

  1. Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor and mounting pad on the rear suspension knuckle. Adhesives, Fluids, Lubricants, and Sealers

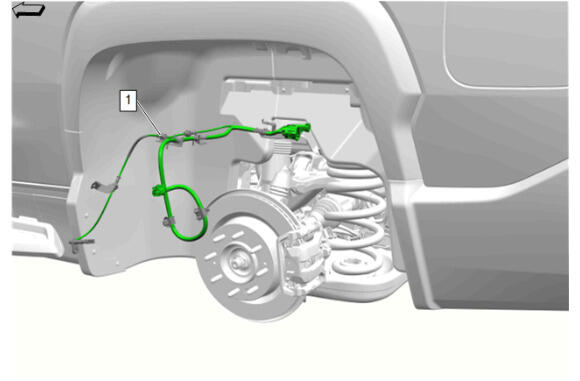

  2. GM6287093Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (1) - Install

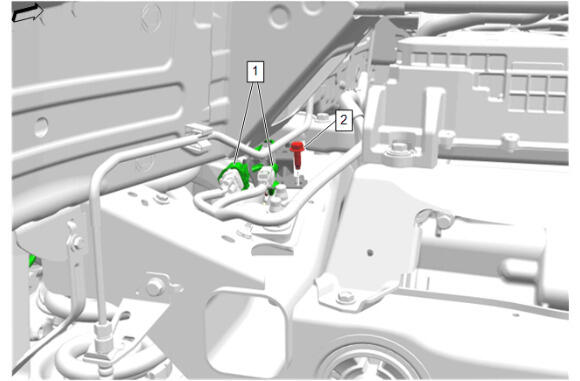

  3. GM6287091Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Rear Wheel Speed Sensor Bracket Bolt (2) @ Rear Suspension Cradle - Install and tighten - Fastener Specifications

  4. Electrical Connector (1) @ Chassis Rear Wiring Harness - Connect [2x]
  5. GM6287090Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Bolt (2) @ Rear Suspension Knuckle - Install and tighten - Fastener Specifications

  6. Rear Wheel Speed Sensor Bracket Bolt (1) @ Rear Suspension Knuckle - Install and tighten - Fastener Specifications

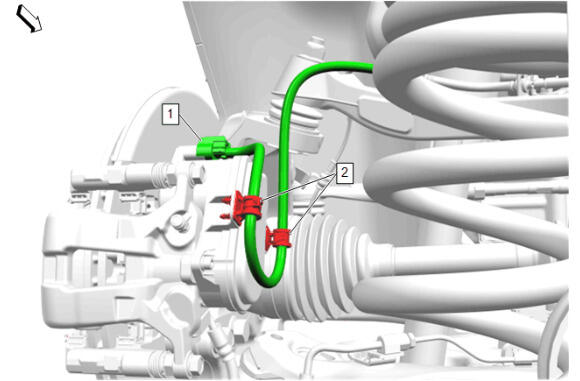

  7. GM6276937Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) @ Rear Parking Brake Actuator - Install [2x]

  8. Electrical Connector (1) @ Rear Parking Brake Actuator - Connect
  9. GM6287088Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor Bracket Bolt (1) @ Rear Suspension Upper Control Arm - Install and tighten [2x] - Fastener Specifications

  10. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  11. Spare Tire - Install
