Fastener Specifications

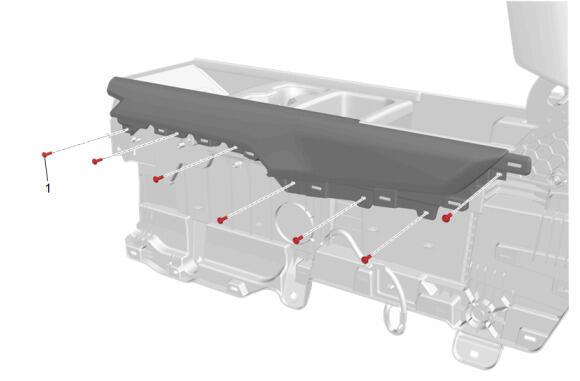

GM6277925Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Trim Plate Bolt [7x] - - 1.5 N.m (13 lb in) Front Floor Console Applique Replacement

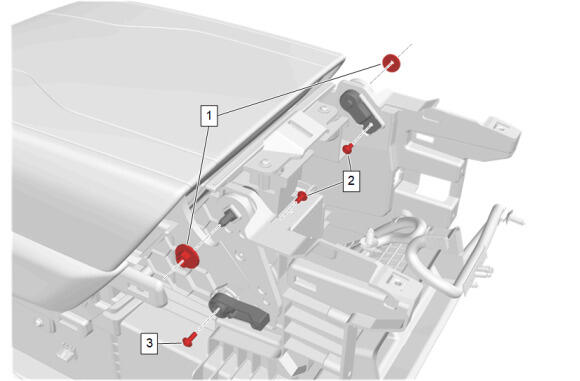

GM6287430Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Armrest

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Nut [2x] - - 3 N.m (27 lb in) Front Floor Console Armrest Dampener Replacement
2 Front Floor Console Armrest Bolt [2x] - - 0.85 N.m (8 lb in) Front Floor Console Armrest Dampener Replacement
3 Front Floor Console Rear Bracket Bolt - - 1.5 N.m (13 lb in) Front Floor Console Center Compartment Door Latch Replacement

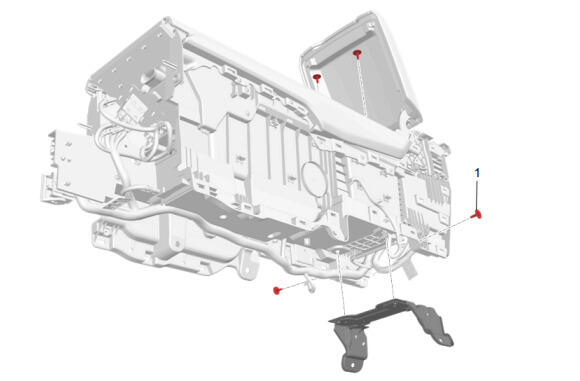

GM6309747Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Intermediate Bracket Bolt [4x] - - 9 N.m (80 lb in) Front Floor Console Bracket Replacement

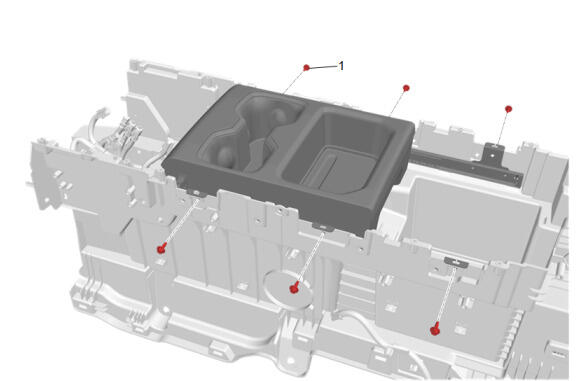

GM6277949Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Cup Holder (- 1WT / 3WT / 4WT)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Body Side Upper Front Applique Bolt [6x] - - 2.5 N.m (22 lb in) Front Floor Console Cup Holder Replacement (- 1WT / 3WT / 4WT)

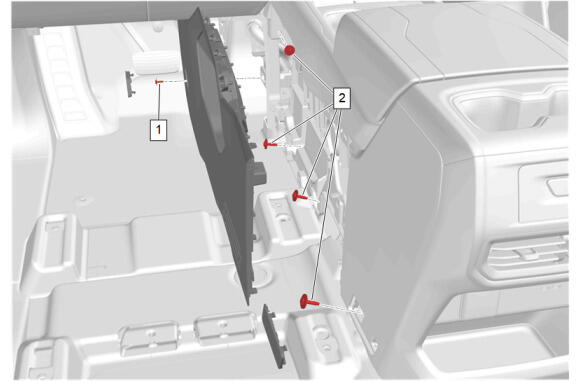

GM6287431Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Extension Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement
2 Front Floor Console Retainer Bolt [4x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

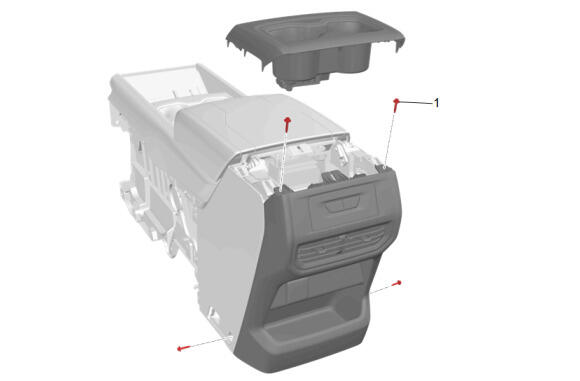

GM6287433Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Rear Cover Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Trim Panel Replacement

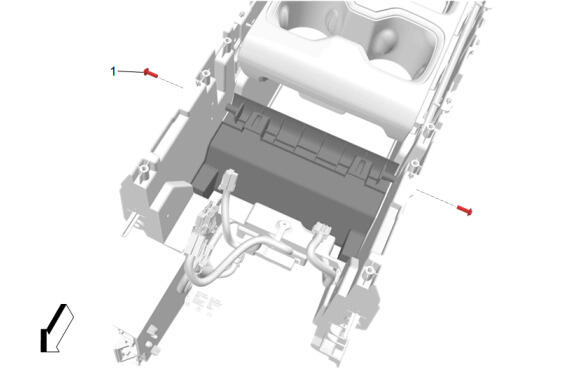

GM6277953Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Side Trim Panel (- 1WT / 3WT / 4WT)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cover Bolt [2x] - - 1.5 N.m (13 lb in) Front Floor Console Side Trim Panel Replacement (- 1WT / 3WT / 4WT)

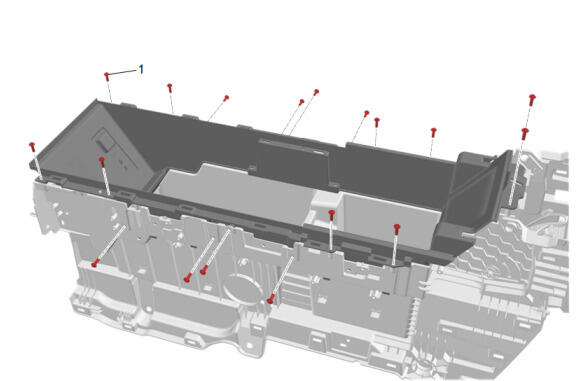

GM6287436Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Upper Panel (1WT / 3WT / 4WT)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Trim Plate Bolt [18x] - - 1.5 N.m (13 lb in) Front Floor Console Upper Panel Replacement (1WT / 3WT / 4WT)

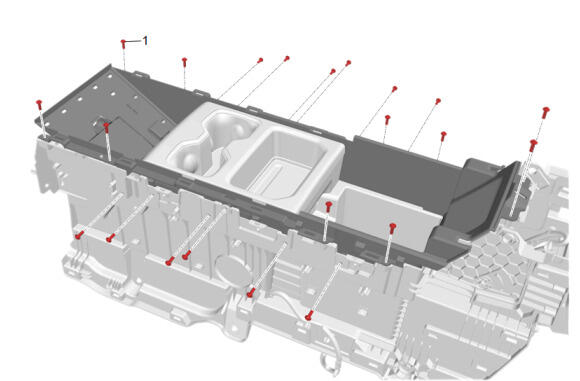

GM6287434Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Upper Panel (- 1WT / 3WT / 4WT)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Trim Plate Bolt [22x] - - 1.5 N.m (13 lb in) Front Floor Console Upper Panel Replacement (- 1WT / 3WT / 4WT)

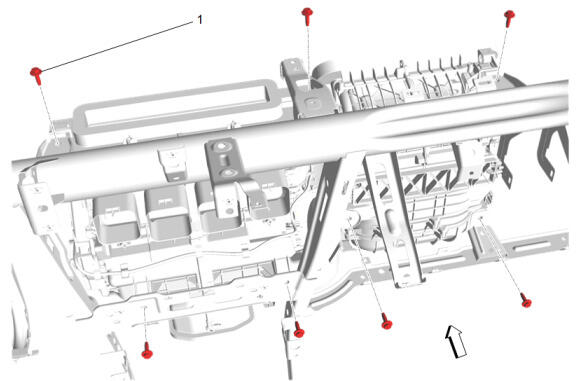

GM6312183Courtesy of GENERAL MOTORS COMPANY
Heater and Air Conditioning Evaporator and Blower Module

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [7x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

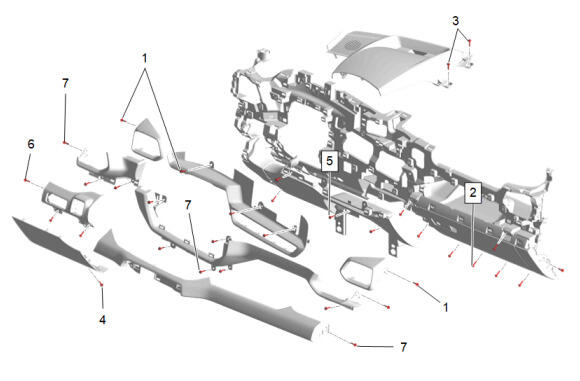

Fig 1: Exploded View Of Instrument Panel Component Fasteners
GM6318186Courtesy of GENERAL MOTORS COMPANY
Instrument Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Air Outlet Bezel Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Air Outlet Bezel Replacement - Center (URL) , or Instrument Panel Air Outlet Bezel Replacement - Center (URW)
Instrument Panel Air Outlet Bezel Replacement - Right Side (URL) , or Instrument Panel Air Outlet Bezel Replacement - Right Side (URW)
Instrument Panel Air Outlet Bezel Replacement - Left Side
2 Instrument Panel Compartment Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Replacement (URL) , or Instrument Panel Compartment Replacement (URW)
3 Instrument Panel Extension Bolt [2x] - - 2.5 N.m (22 lb in) Forward Collision Alert Display Bezel Replacement (- UV6)
Head-Up Display Bezel Replacement (UV6)
4 Instrument Panel Knee Bolster Bolt - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
5 Instrument Panel Lower Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Trim Panel Replacement (URL) , or Instrument Panel Lower Trim Panel Replacement (URW / TSQ)
6 Instrument Panel Switch Trim Plate Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Switch Trim Plate Replacement
7 Instrument Panel Trim Pad Bolt [11x] - - 2.5 N.m (22 lb in) Instrument Panel Center Trim Pad Replacement
Instrument Panel Center Trim Pad Replacement - Left Side
Instrument Panel Center Trim Pad Replacement - Right Side (URL) , or Instrument Panel Center Trim Pad Replacement - Right Side (URW)

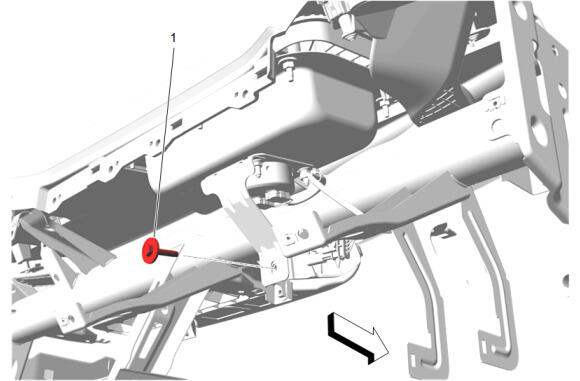

GM6308462Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Airbag

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Upper Trim Panel Removal and Installation (URL) , or Instrument Panel Upper Trim Panel Removal and Installation (URW)

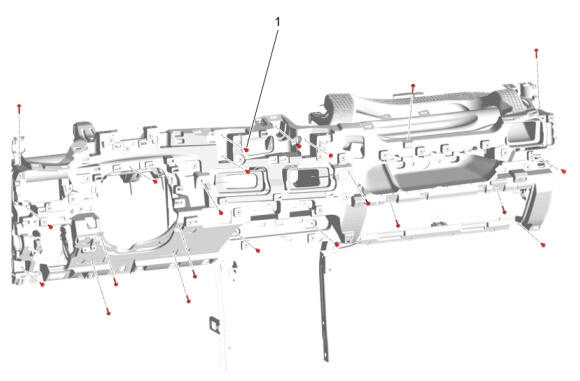

GM6318188Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Carrier

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Carrier Bolt [22x] - - 2.5 N.m (22 lb in) Instrument Panel Carrier Removal and Installation (URL)

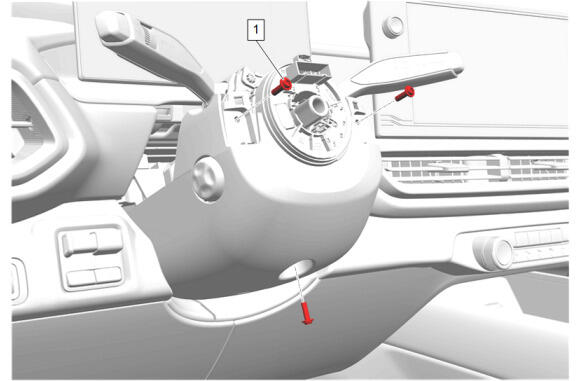

GM6302381Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 3.3 N.m (29 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement

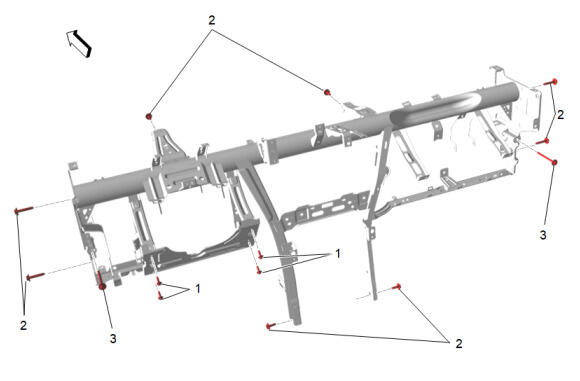

GM6308461Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Deflector Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement
2 Instrument Panel Tie Bar Bolt [8x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
3 Instrument Panel Tie Bar Brace Bolt [2x] - - 9 N.m (80 lb in) Instrument Panel Tie Bar Replacement

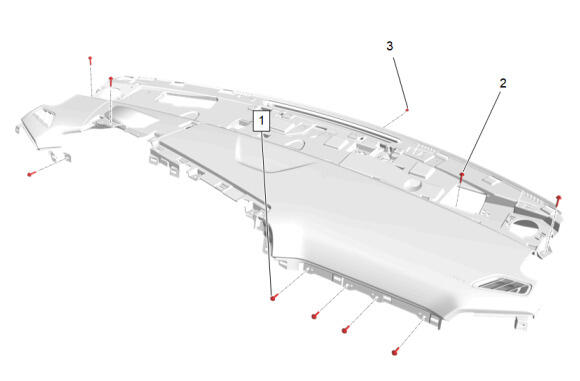

GM6318189Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Upper Trim Panel Bolt [8x] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Removal and Installation (URL) , or Instrument Panel Upper Trim Panel Removal and Installation (URW)
2 Side Window Defogger Outlet Duct Bolt - - 1.5 N.m (13 lb in) Instrument Panel Upper Trim Panel Removal and Installation (URL) , or Instrument Panel Upper Trim Panel Removal and Installation (URW)
3 Windshield Defroster Outlet Duct Bolt - - 1.5 N.m (13 lb in) Instrument Panel Upper Trim Panel Removal and Installation (URL) , or Instrument Panel Upper Trim Panel Removal and Installation (URW)

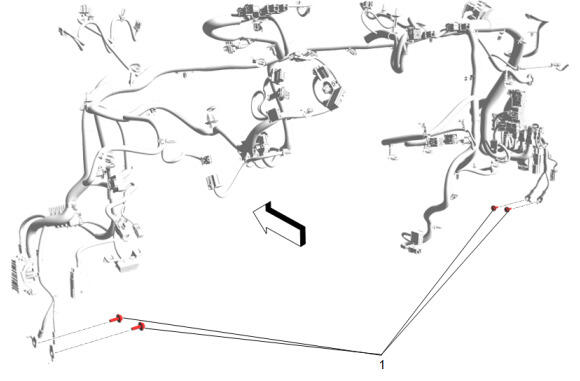

GM6307874Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Wiring Harness Ground Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Wiring Harness Replacement
