Installation Procedure

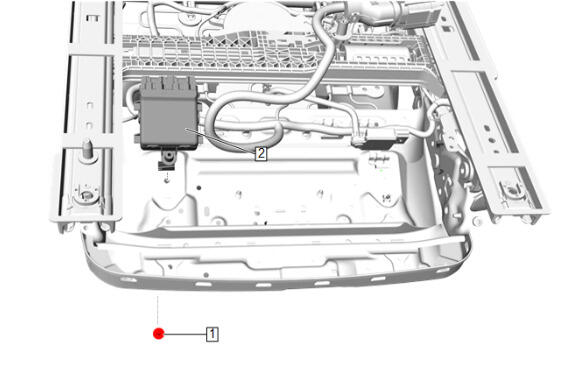

  1. GM6273971Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Front Seat Heater Vent Control Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Seat Bolt (1) - Install and tighten - Fastener Specifications
  4. Front Seat Cushion Cover and Pad - Install - Front Seat Cushion Cover and Pad Removal and Installation (A2V) , or Front Seat Cushion Cover and Pad Removal and Installation (A7E) , or Front Seat Cushion Cover and Pad Removal and Installation (A2X / A7J)
