Rear Differential Components

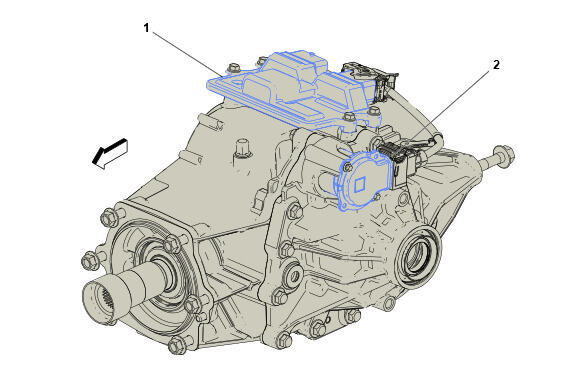

GM6431317Courtesy of GENERAL MOTORS COMPANY
Callout Items
1 K47 Rear Drive Control Module (F48) K47 Rear Drive Control Module X1 , or K47 Rear Drive Control Module X2
2 M32 Differential Clutch Pump (F48) M32 Differential Clutch Pump
