Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

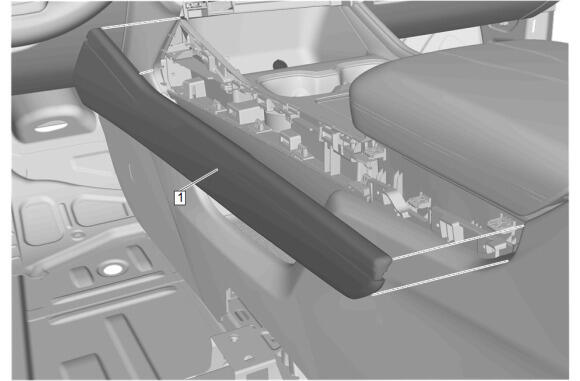

Front Floor Console Upper Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Floor Console Side Trim Panel- Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

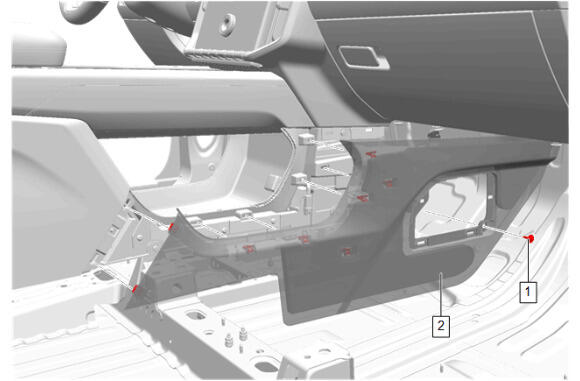

Front Floor Console Extension Panel - Right Side (2) - Install

CAUTION:

Front Floor Console Extension Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Front Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (3) - Install
Front Floor Console Extension Panel Bolt (2) - Install and tighten - Fastener Specifications

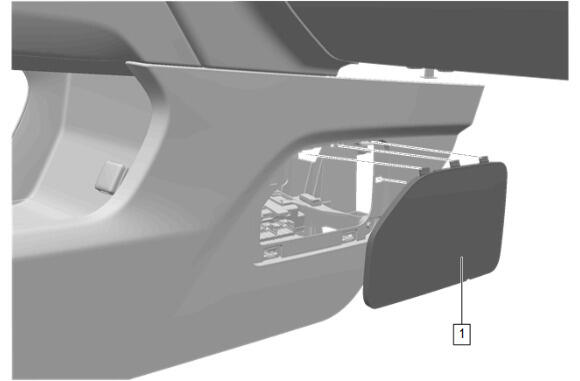

Front Floor Console Bolt Access Hole Cover (1) - Install
