T22 Wireless Accessory Charging Module
 Courtesy of GENERAL MOTORS COMPANY
|

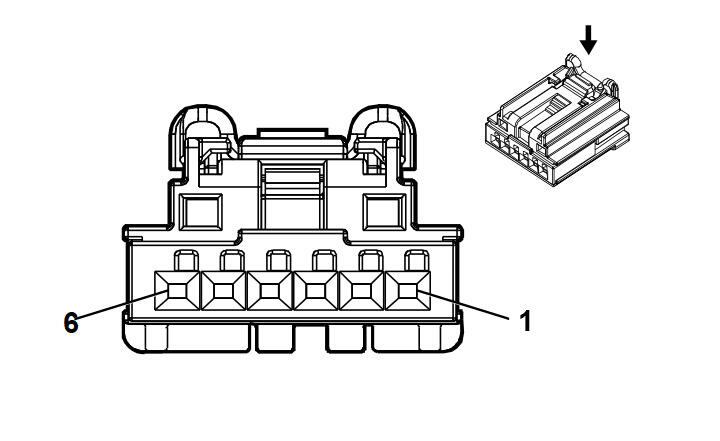

Connector Part Information
- Harness Type: Front Floor Console Wiring Harness
- OEM Connector: 13583827
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Generation Y Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD / WH |
6440 |
Battery Positive Voltage |
I |
K4C |
| 2 |
0.35 |
BK |
2050 |
Ground |
I |
K4C |
| 3 |
0.35 |
BU / YE |
4984 |
AUTOSAR CAN Bus [-] 5 Serial Data |
I |
K4C |
| 4 |
0.35 |
BU / WH |
4985 |
AUTOSAR CAN Bus [+] 5 Serial Data |
I |
K4C |
| 5 |
0.35 |
BU / YE |
4984 |
AUTOSAR CAN Bus [-] 5 Serial Data |
I |
K4C |
| 6 |
0.35 |
BU / WH |
4985 |
AUTOSAR CAN Bus [+] 5 Serial Data |
I |
K4C |
