Fastener Specifications

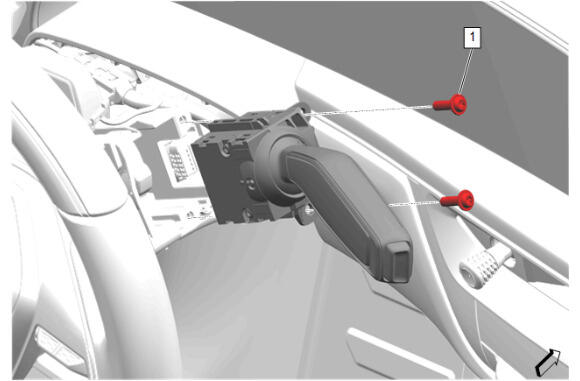

Gear Shift Control Module Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Electronic Control Bolt [2x] | - | - | 3.3 N.m (29 lb in) | Gear Shift Control Module Replacement (+UKL) , or Gear Shift Control Module Replacement (-UKL) |
