Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

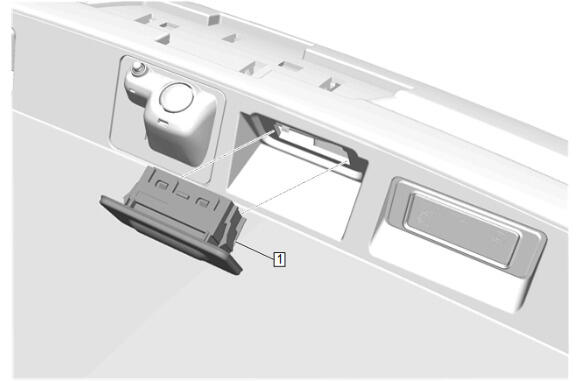

Liftgate Release Switch - Exterior (1) - Install
Courtesy of GENERAL MOTORS COMPANY

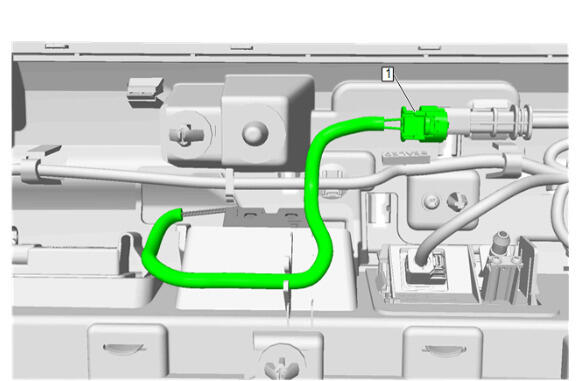

Connect the electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

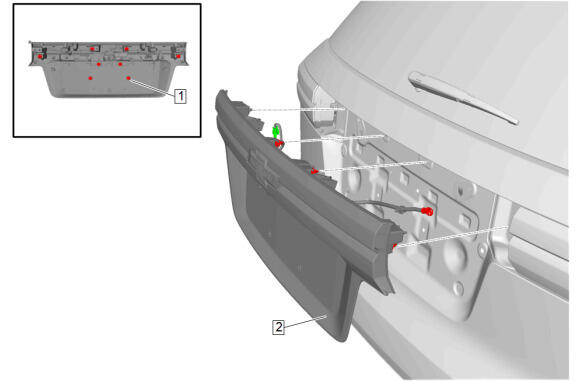

Rear Closure Center with License Plate Lamp Applique (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Rear Closure Center Applique Nut (3) - Install and tighten [9x] - Fastener Specifications

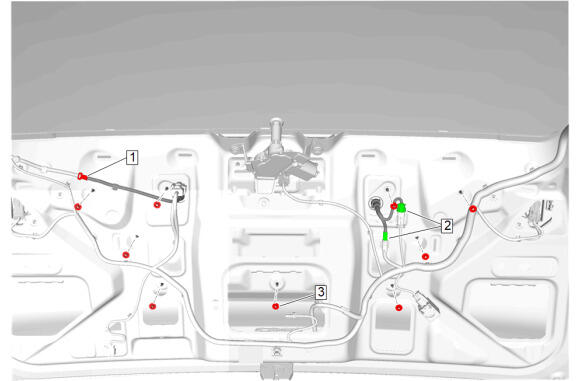

Install the wiring harness to the liftgate.
Connect the electrical connectors and install the wiring harness retainers as necessary. (2)
Connect the rear washer hose. (1)
Install the washer hose grommet to the liftgate.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Liftgate Lower Trim Finish Panel (3) - Install
Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
Liftgate Inside Pull Handle Cover (1) - Install
