Installation Procedure

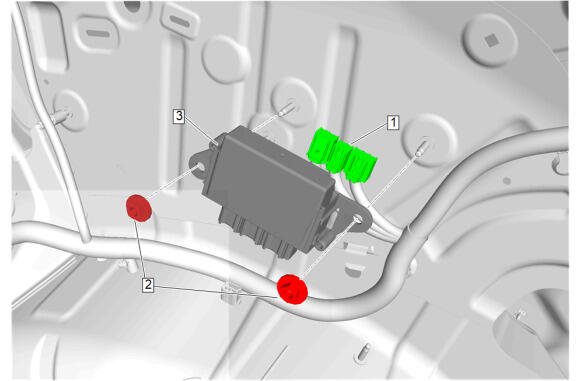

  1. GM6397945Courtesy of GENERAL MOTORS COMPANY

    Parking Assist Control Module (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Parking Assist Control Module Nut (2) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector. (1)
  4. GM6399526Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel- Right Side (1) - Install

  5. Connect the electrical connectors.
  6. GM4755353Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  7. GM4755166Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lock Striker Cover (1) - Install

  8. GM6399531Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Divider (2) - Install

  9. Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications
  10. GM6399529Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Front Trim (1) - Install

  11. GM6399524Courtesy of GENERAL MOTORS COMPANY

    Load Floor Trim Panel (1) - Install

  12. GM6399467Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (3) - Install [2x]

  13. Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
  14. Cargo Tie Down Loop Trim Cover (1) - Install [2x]
  15. GM6399466Courtesy of GENERAL MOTORS COMPANY

    Body Rear Corner Upper Garnish Molding (3) - Install

  16. Body Rear Corner Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
  17. Body Rear Corner Upper Garnish Molding Cap (1) - Install
  18. GM6399528Courtesy of GENERAL MOTORS COMPANY

    Quarter Upper Trim Panel (3) - Install

  19. Quarter Upper Trim Panel Bolt (2) - Install and tighten - Fastener Specifications
  20. Quarter Upper Trim Panel Bolt Cap (1) - Install
  21. GM4772715Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Rear Side Door Sill Garnish Molding- Right Side (1) - Install

  22. Enable the SIR System. SIR Disabling and Enabling
  23. Perform the necessary programming and setup procedure: Control Module References
