Installation Procedure

  1. GM4292567Courtesy of GENERAL MOTORS COMPANY

    Accelerator Pedal (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Accelerator Pedal Fastener (1) - Install and tighten [3x] - Fastener Specifications

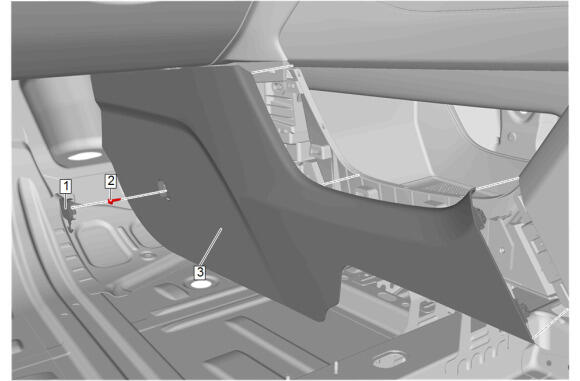

  4. GM6399479Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (3) - Install

  5. Front Floor Console Extension Panel Bolt (2) - Install and tighten - Fastener Specifications
  6. Front Floor Console Bolt Access Hole Cover (1) - Install
