Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

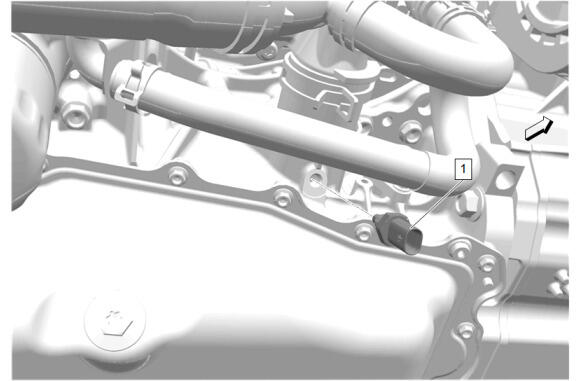

Engine Coolant Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Install underbody panels as necessary. Underbody Panel Component Locator
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
