Installation Procedure

  1. GM4292621Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Seal (2) - Install New

  2. Fuel Tank Fuel Pump Module (1) - Install
  3. GM4292619Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH 45722  Fuel Sender Lock Ring Wrench

  4. GM4292617Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  5. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Connect the electrical connector (1) at the fuel tank fuel pump module.

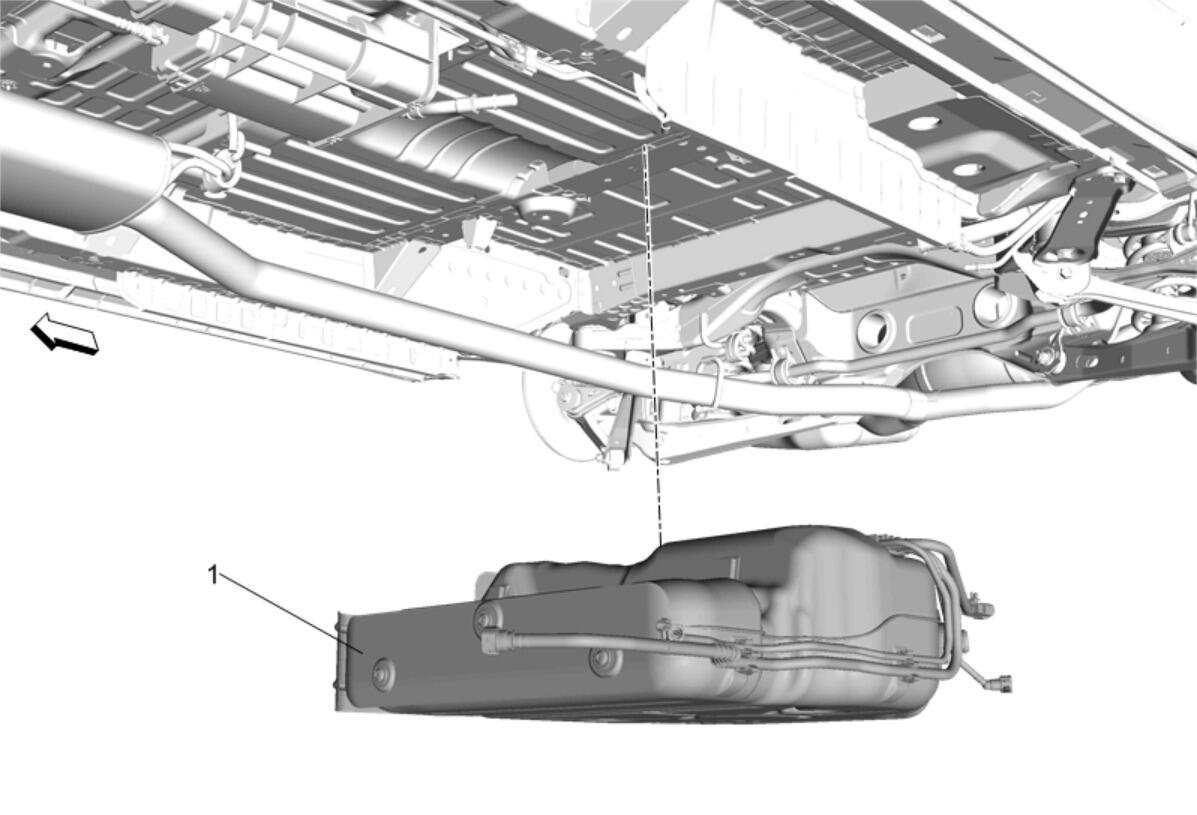

  7. GM5222729Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  8. Fuel Tank (1) - Install
  9. GM5222727Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

    10. CAUTION:

    Refer to Fastener Caution .

  10. Fuel Tank Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications

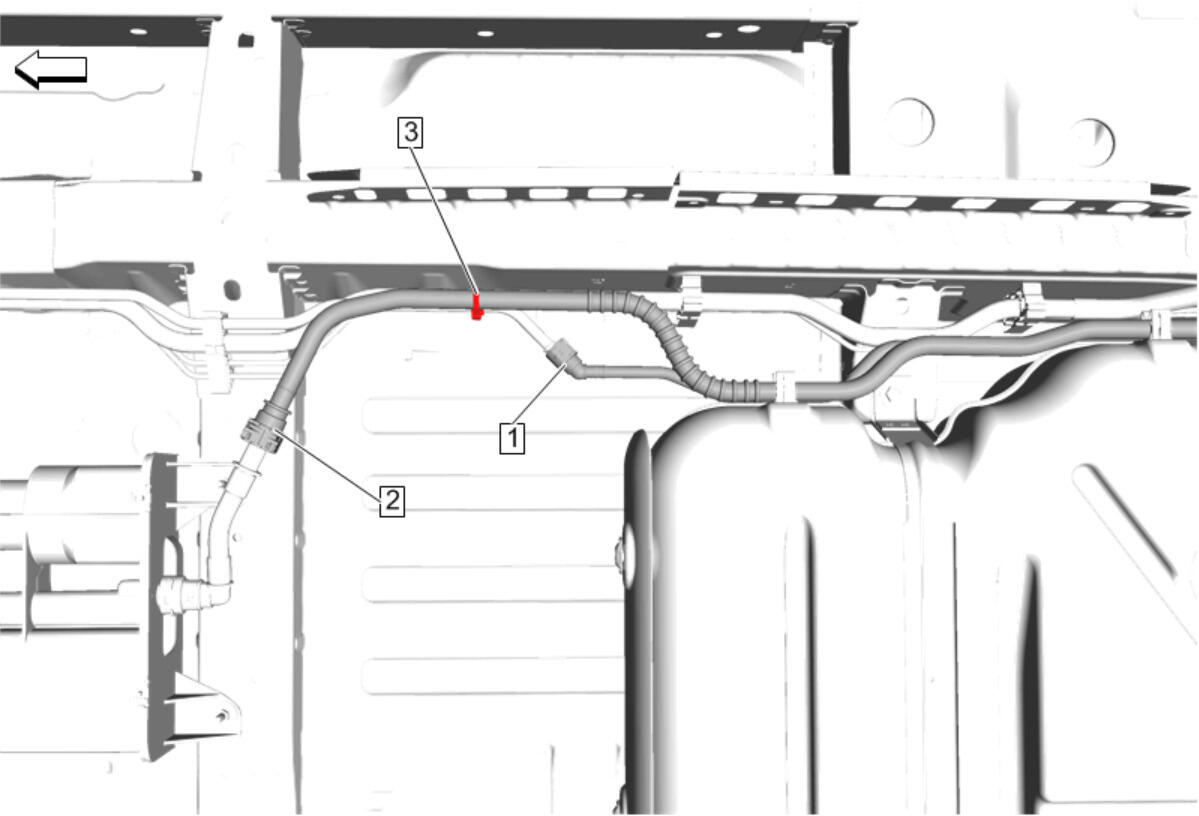

  11. GM5222726Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Install

  12. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  13. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

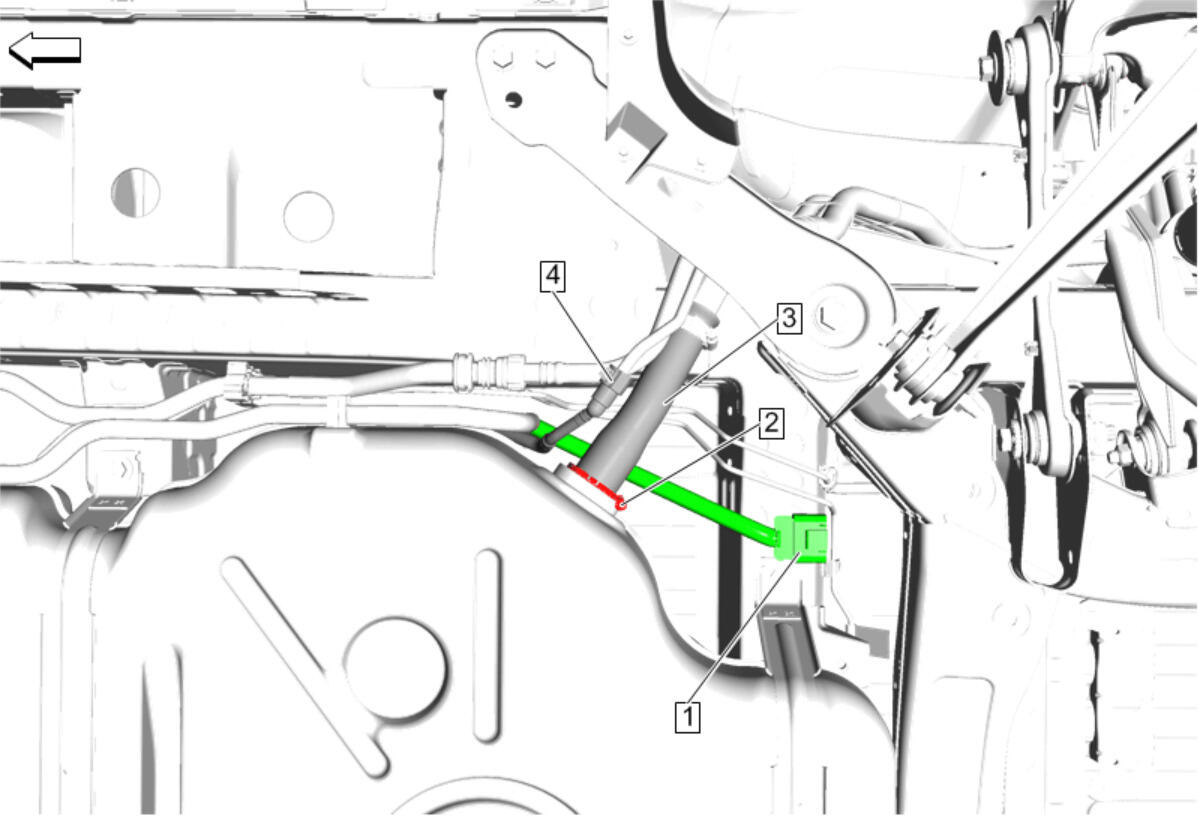

  14. GM5222725Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  15. Fuel Tank Filler Hose (3) - Install
  16. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  17. Wiring Harness (1) - Connect
  18. Refill the fuel tank.
  19. Inspect for fuel leaks.
