Installation Procedure

  1. GM4293931Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Pressure Sensor (2) - Install

  2. Connect the electrical connector.
  3. Fuel Tank Pressure Sensor Cover (1) - Install
  4. GM5214679Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  5. Fuel Tank (1) - Install
  6. GM5214678Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

    7. CAUTION:

    Refer to Fastener Caution .

  7. Fuel Tank Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications
  8. Remove the adjustable jack from under the fuel tank.
  9. Connect the hose and wiring harness retainers as necessary.

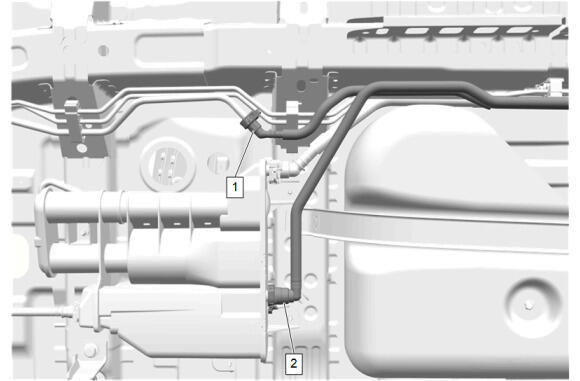

  10. GM6539763Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  11. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  12. GM5214676Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  13. Fuel Tank Filler Hose (3) - Install
  14. Fuel Tank Filler Hose Clamp (2) - Tighten - Fastener Specifications
  15. Wiring Harness (1) - Connect
  16. GM6465201Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Drive Differential Carrier Housing Gasket (2) - Install NEW

  17. Using a suitable jack stand support the driveline torque tube.
  18. Driveline Torque Tube (1) @ Differential Carrier Assembly - Install
  19. GM6466037Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The driveline torque tube and differential carrier are balanced as an assembly. When re-using the original driveline torque tube it should be re-installed in the same position in relation the pinion splines.

    Ensure the driveline torque tube and pinion spline marks (1) are aligned.

  20. GM6408735Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  21. Driveline Torque Tube Bolt (1) - Install and tighten [6x] - Fastener Specifications
  22. GM6408713Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  23. Differential Carrier Front Bolt (1) - Install and tighten - Fastener Specifications
  24. Remove the jack stand from under the differential carrier.
  25. Install the propeller shaft. Two-Piece Propeller Shaft Replacement
  26. Refill the fuel tank.
  27. Inspect for fuel leaks.
