Installation Procedure

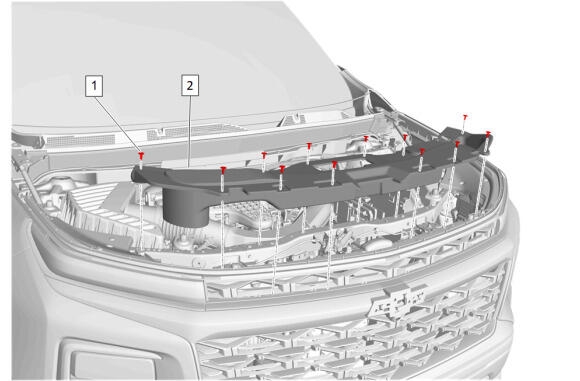

  1. GM6382636Courtesy of GENERAL MOTORS COMPANY

    Intake Air Splash Shield (2) - Install

  2. Intake Air Splash Shield Retainer (1) - Install [12x]
