Installation Procedure

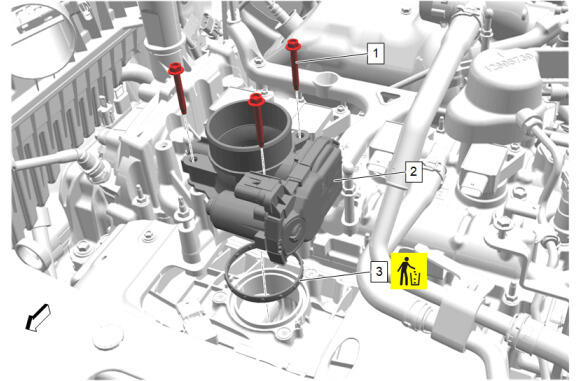

Intake Manifold Gasket (3) - Install NEW
- Throttle Body (2) - Install
- Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connector.

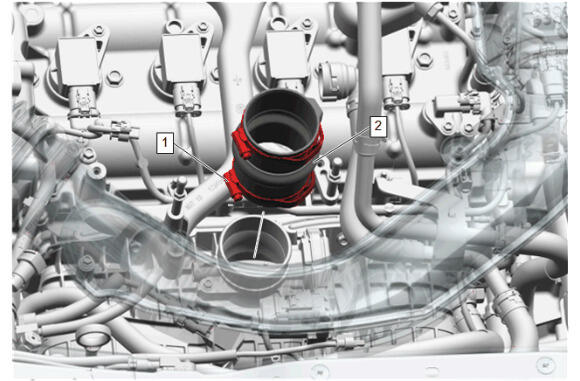

Charge Air Cooler Inlet Hose (2) - Install
- Charge Air Cooler Coolant Hose Clamp (1) - Tighten - Fastener Specifications
Charge Air Cooler (1) - Install
Charge Air Cooler Coolant Hose Clamp (4) - Tighten - Fastener Specifications
- Charge Air Cooler Coolant Hose (3) - Install [2x]
- Charge Air Cooler Coolant Hose Retainer (2) - Engage [2x]
- Charge Air Cooler Outlet Air Hose Clamp (1) - Tighten [2x] - Fastener Specifications
- Connect the electrical connector. (5)
Charge Air Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications
Air Cleaner Outlet Duct (4) - Install
- Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
- Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Air Cleaner Outlet Duct Clamp (5) - Tighten - Fastener Specifications
- Turbocharger Outlet Duct Front Clamp (1) - Tighten - Fastener Specifications
Positive Crankcase Ventilation Fresh Air Tube (1) @ - Connect - Plastic Collar Quick Connect Fitting Service
Oil Filler Cap (1) - Remove
Intake Manifold Cover (1) - Install
- Oil Filler Cap - Install
- Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
- Perform the throttle body idle air flow compensation reset procedure. Throttle Body Idle Air Flow Compensation Reset
CAUTION:
Refer to Fastener Caution .
