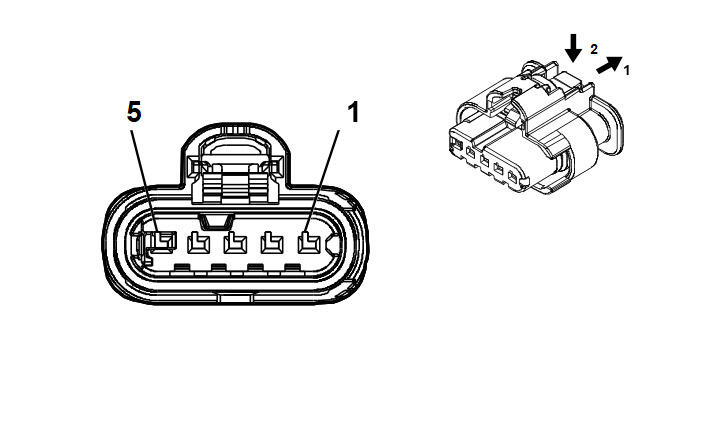

Q97B Engine Coolant Flow Control Valve - Block
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13515045
- Service Connector: 85083668
- Description: 5-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE / GY |
10828 |
Block Rotary Valve Close Control |
I |
|
| 2 |
0.5 |
YE / BN |
10827 |
Block Rotary Valve Open Control |
I |
|
| 3 |
0.5 |
BK / GN |
580 |
Engine Control Sensors Low Reference 2 |
I |
|
| 4 |
0.5 |
YE |
10826 |
Block Rotary Valve Feedback Signal |
I |
|
| 5 |
0.5 |
GY / RD |
10667 |
Engine Control Sensors 5 Volt Reference |
I |
|
