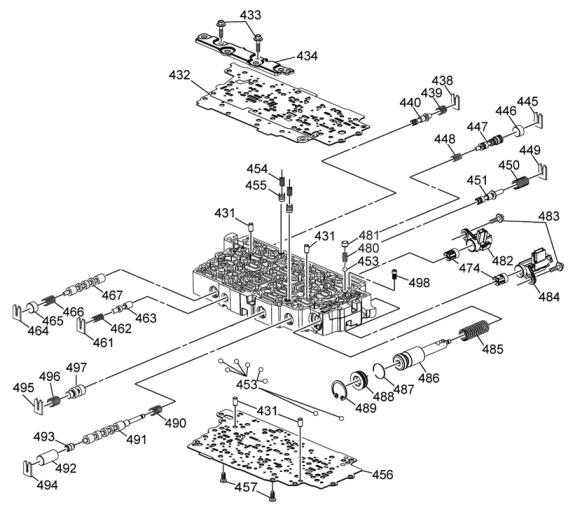

| 431 |
Control Valve Body Locating Pin [2x] |
| 432 |
Control Valve Body Spacer Plate |
| 433 |
Control Valve Solenoid Body Bolt [2x] |
| 434 |
Oil Transfer Plate |
| 438 |
Feed Limit Valve Spring Retainer |
| 439 |
Feed Limit Valve Spring |
| 440 |
Feed Limit Valve |
| 445 |
3-8 Clutch Regulator Valve Bore Plug Retainer |
| 446 |
3-8 Clutch Regulator Valve Bore Plug |
| 447 |
3-8 Clutch Regulator Valve |
| 448 |
3-8 Clutch Regulator Valve Spring |
| 449 |
Actuator Feed Limit Valve Spring Retainer |
| 450 |
Actuator Feed Limit Valve Spring |
| 451 |
Actuator Feed Limit Valve |
| 453 |
Control Valve Body Ball Check Valve [6x] |
| 454 |
Variable Feed Solenoid Clutch Accumulator Piston Spring [2x] |
| 455 |
Variable Feed Solenoid Clutch Accumulator Piston [2x] |
| 456 |
Control Valve Body Spacer Plate |
| 457 |
Control Valve Body Spacer Plate Retainer [2x] |
| 461 |
Latch Valve Spring Retainer |
| 462 |
Latch Valve Spring |
| 463 |
Latch Valve |
| 464 |
Clutch Selector Valve Bore Plug Retainer |
| 465 |
Clutch Selector Valve Bore Plug |
| 466 |
Clutch Selector Valve Spring |
| 467 |
Clutch Selector Valve |
| 474 |
Mode Valve Position Switch Magnet [2x] |
| 480 |
Park Selector Valve Spring |
| 481 |
Park Selector Valve Bore Plug |
| 482 |
Mode Valve Position Switch |
| 483 |
Control Valve Solenoid Body Bolt [2x] |
| 484 |
Park Servo Piston Switch |
| 485 |
Park Release Servo Piston Spring |
| 486 |
Park Release Servo Piston |
| 487 |
Park Release Servo Piston Seal |
| 488 |
Park Release Servo Valve Bore Plug |
| 489 |
Park Release Servo Valve Bore Plug Retainer |
| 490 |
Mode 2 Valve Spring |
| 491 |
Mode 2 Electronic Transmission Range Selector Valve |
| 492 |
Modulator Valve Bushing |
| 493 |
Mode 2 Valve |
| 494 |
Electronic Transmission Range Selector Mode Enable Valve Spring Retainer |
| 495 |
Mode 2 Valve Bore Plug Retainer |
| 496 |
Electronic Transmission Range Selector Mode Enable Valve Spring |
| 497 |
Electronic Transmission Range Selector Mode Enable Valve |
| 498 |
Clutch Exhaust Spring Check Valve |
