Installation Procedure

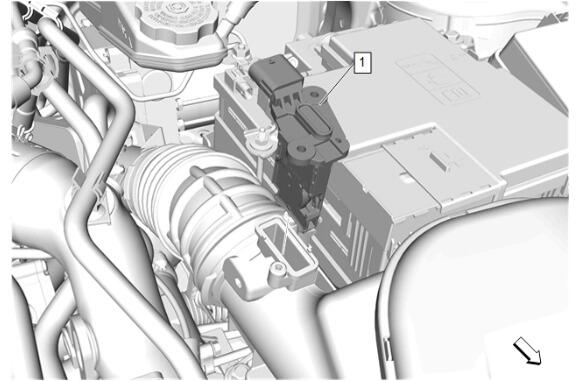

  1. GM6162740Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (1) - Install

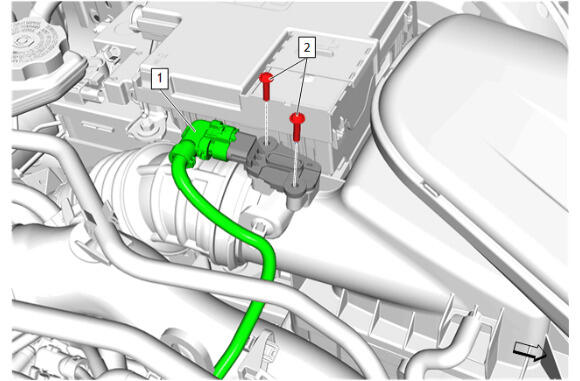

  2. GM6162739Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Mass Airflow Sensor Bolt (2) - Install and tighten [2x] - Fastener Specifications

  3. Electrical Connector (1) - Connect
