Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

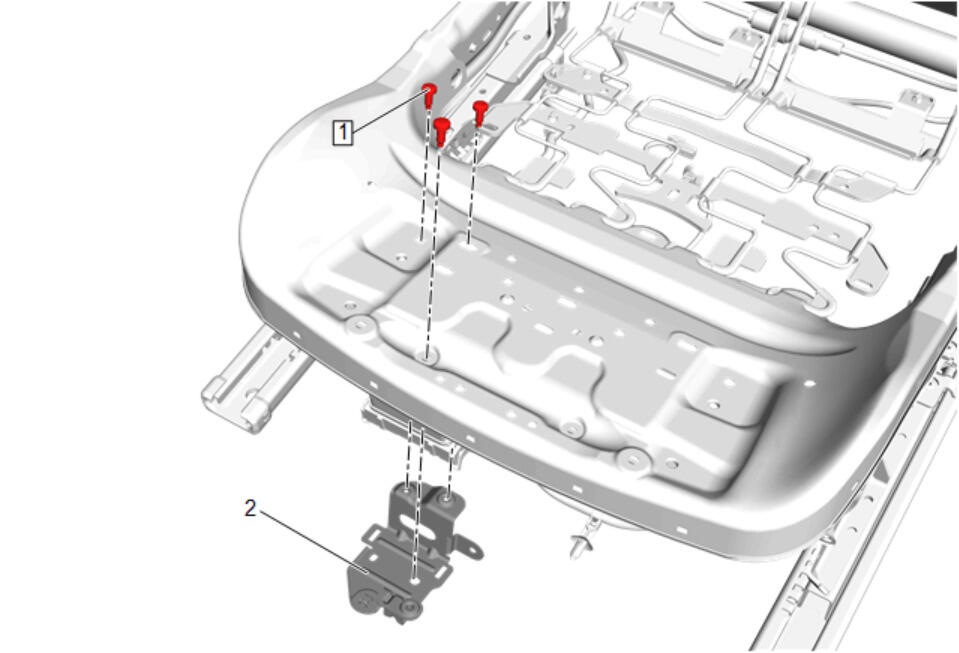

Front Seat Heater Control Module Bracket (2) - Install

CAUTION:

Front Seat Heater Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

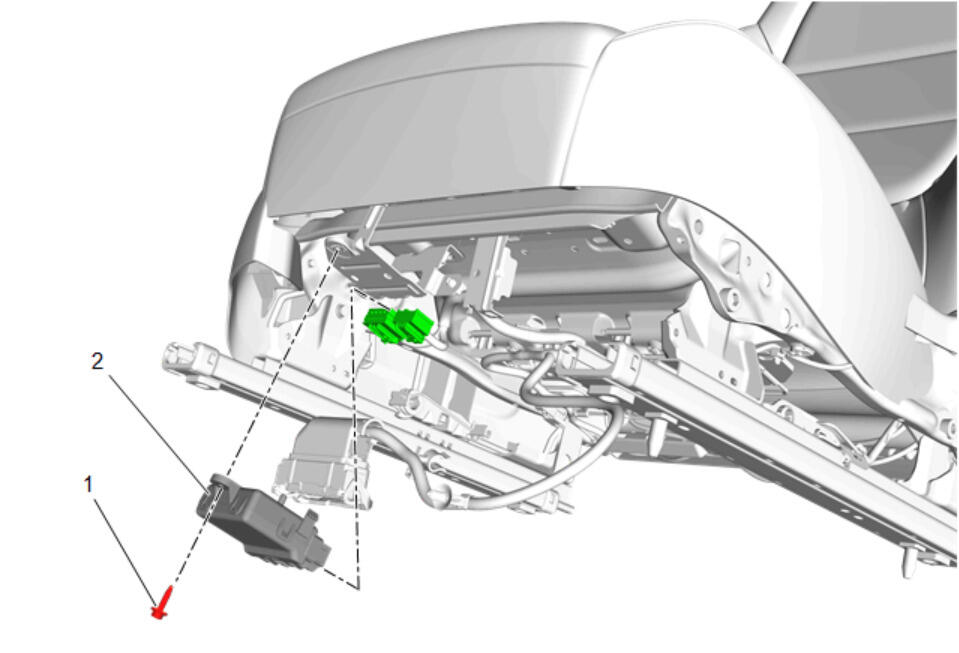

Front Seat Heater Vent Control Module (2) - Install
Front Seat Heater Control Module Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

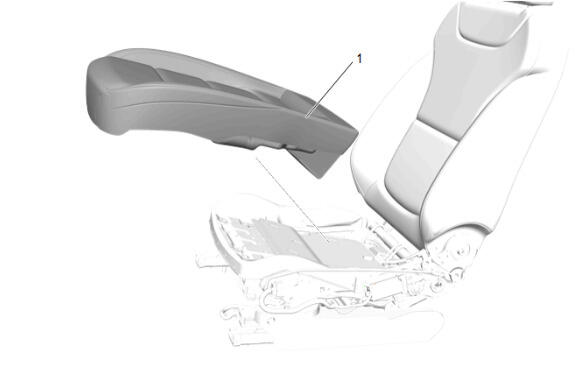

Front Seat Cushion Cover and Pad (2) - Install - Front Seat Cushion Cover and Pad Removal and Installation (Manual) , or Front Seat Cushion Cover and Pad Removal and Installation (Power)
