Front of Engine Components

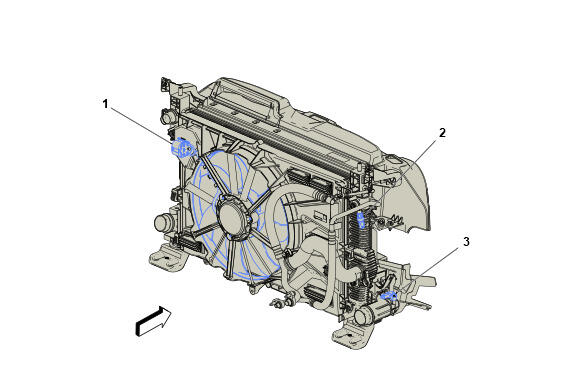

GM6200802Courtesy of GENERAL MOTORS COMPANY
Items
1. G10 Cooling Fan Motor G10 Cooling Fan Motor
2. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3. B111 Turbocharger Boost Sensor B111 Turbocharger Boost Sensor
