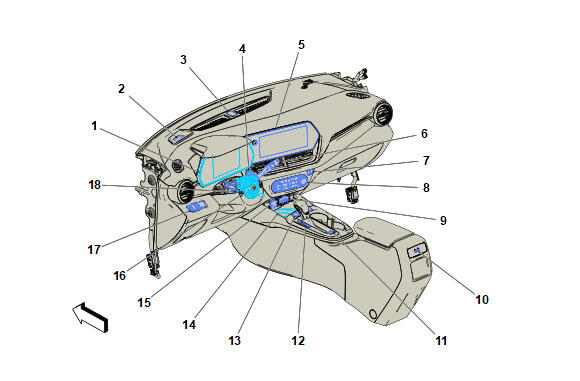

Front of Instrument Panel Components

GM6200823Courtesy of GENERAL MOTORS COMPANY
Items
1. P16 Instrument Cluster (UDC) P16 Instrument Cluster (UDC & UEU) , or P16 Instrument Cluster X1 (URO) , or P16 Instrument Cluster X2 (URO)
2. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU)
3. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
4. S38 Ignition Mode Switch (BTM) S38 Ignition Mode Switch
5. A22 Radio Controls (URO) A22 Radio Controls X1 (IVA) , or A22 Radio Controls X2 (IVA)
6. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
7. S26 Hazard Warning Switch S26 Hazard Warning Switch
8. A26 HVAC Controls (C68) A26 HVAC Controls (C68)
9. X92 USB Receptacle (UBJ) X92 USB Receptacle X1 , or X92 USB Receptacle X2
10. X92C USB Receptacle - Center Console Rear (UBI) X92C USB Receptacle - Center Console Rear (UBI)
11. S91 Park Brake Control Switch S91 Park Brake Control Switch
12. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
13. S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
14. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C)
15. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
16. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2
17. S30 Headlamp Switch S30 Headlamp Switch
18. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
