HVAC Assembly Components (C68)

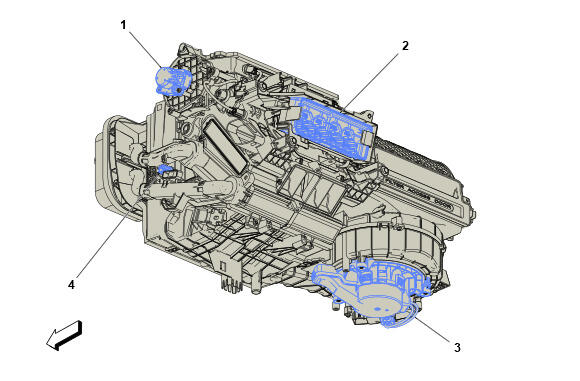

Courtesy of GENERAL MOTORS COMPANY

Items
1. M37 Mode Door Actuator (C68) M37 Mode Door Actuator
2. K33 HVAC Control Module K33 HVAC Control Module X1 (C68) , or K33 HVAC Control Module X2 (C68) , or K33 HVAC Control Module X3 (C68)
3. M8 Blower Motor M8 Blower Motor
4. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor

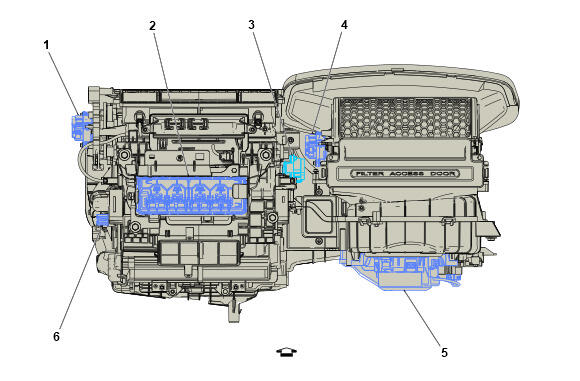

Courtesy of GENERAL MOTORS COMPANY

Items
1. M37 Mode Door Actuator (C68) M37 Mode Door Actuator
2. K33 HVAC Control Module K33 HVAC Control Module X1 (C68) , or K33 HVAC Control Module X2 (C68) , or K33 HVAC Control Module X3 (C68)
3. M6 Air Temperature Door Actuator (C68) M6 Air Temperature Door Actuator
4. M4 Air Inlet Door Actuator M4 Air Inlet Door Actuator
5. M8 Blower Motor M8 Blower Motor
6. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor
