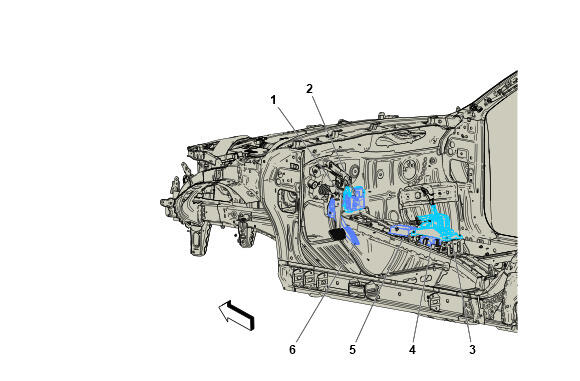

Upper Left of Instrument Panel Components

GM6200822Courtesy of GENERAL MOTORS COMPANY
Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. K84 Keyless Entry Control Module (BTM) K84 Keyless Entry Control Module X1 (BTM) , or K84 Keyless Entry Control Module X2 (BTM)
3. S3 Transmission Shift Lever S3 Transmission Shift Lever
4. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2
5. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AWZ) , or K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
6. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
