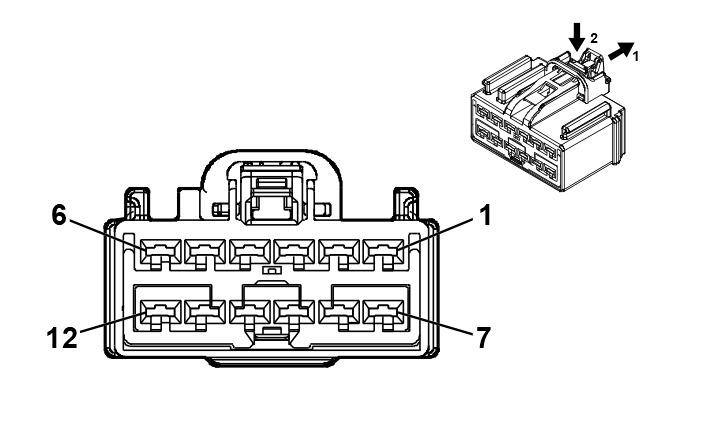

K61 Sunroof Control Module
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Roof Wiring Harness
- OEM Connector: 7289-9152-40
- Service Connector: 13518424
- Description: 12-Way F 2.8 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368264 |
J-35616-4A (PU) |
J-38125-11A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD / BU |
540 |
Battery Positive Voltage |
I |
CAC |
| 2 |
2.5 |
BK |
4050 |
Ground |
I |
CAC |
| 3 |
0.35 |
BK / GY |
128 |
Sunroof Switch Low Reference |
I |
CAC |
| 4 |
0.35 |
GN / BN |
6132 |
Body Control Module LIN Bus 1 |
I |
CAC |
| 5 |
0.35 |
BU / VT |
5027 |
Sunroof Switch Serial Data 1 Signal |
I |
CAC |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
WH / GN |
3031 |
Sunroof Vent Switch Signal |
I |
CAC |
| 8 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
