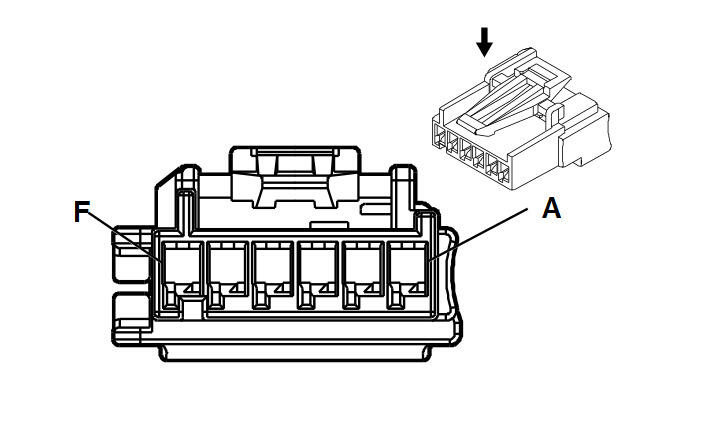

K71 Transmission Control Module X2
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Automatic Transmission Wiring Harness
- OEM Connector: 13540209
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 150.2 Micro-Pack Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
BK / YE |
7502 |
Transmission Internal Mode Switch Park Neutral Signal |
I |
- |
| B |
- |
VT / WH |
5981 |
Transmission Range Switch Signal A |
I |
- |
| C |
- |
GY / BN |
5982 |
Transmission Range Switch Signal B |
I |
- |
| D |
- |
WH / BK |
5983 |
Transmission Range Switch Signal C |
I |
- |
| E |
- |
GY / WH |
4168 |
Transmission Range Switch Signal P |
I |
- |
| F |
- |
BK / GY |
3927 |
Transmission Internal Mode Switch Feedback Signal |
I |
- |
