Fastener Specifications

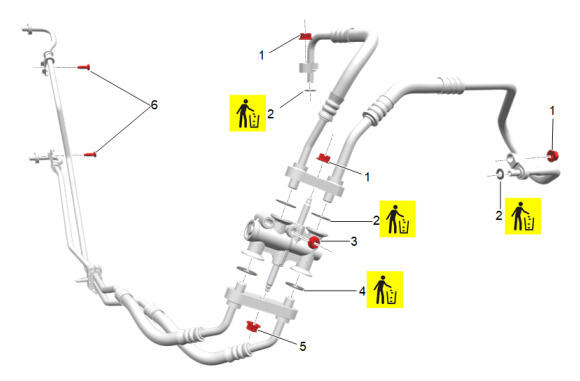

Fig 1: Identifying Transmission Cooler Bypass Valve / Transmission Fluid Cooler Pipe Components And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Transmission Cooler Bypass Valve / Transmission Fluid Cooler Pipe

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Transmission Fluid Cooler Pipe Nut	-	-	22 N.m (16 lb ft)	Transmission Fluid Cooler Pipe Replacement (Transmission) , or Transmission Fluid Cooler Pipe Replacement (Radiator)
2	Transmission Fluid Cooler Pipe Seal	Yes	-	-	Transmission Fluid Cooler Pipe Replacement (Transmission) , or Transmission Fluid Cooler Pipe Replacement (Radiator)
3	Transmission Fluid Cooler Pipe Nut	-	-	9 N.m (80 lb in)	Transmission Cooler Bypass Valve Replacement
4	Transmission Fluid Cooler Pipe Seal	Yes	-	-	Transmission Fluid Cooler Pipe Replacement (Transmission) , or Transmission Fluid Cooler Pipe Replacement (Radiator)
5	Transmission Fluid Cooler Pipe Nut	-	-	22 N.m (16 lb ft)	Transmission Fluid Cooler Pipe Replacement (Transmission) , or Transmission Fluid Cooler Pipe Replacement (Radiator)
6	Transmission Fluid Cooler Pipe Bolt	-	-	9 N.m (80 lb in)	Transmission Fluid Cooler Pipe Replacement (Transmission) , or Transmission Fluid Cooler Pipe Replacement (Radiator)
