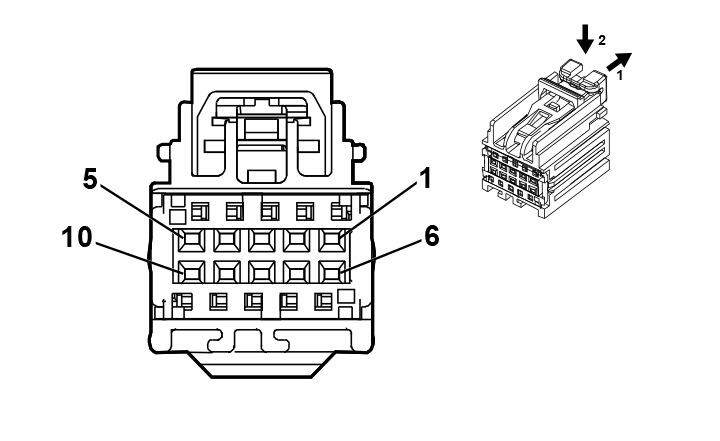

K43 Power Steering Control Module X2

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Instrument Panel Wiring Harness Extension Harness OEM Connector: 7289-5068-60 Service Connector: Service by Harness - See Part Catalog Description: 10-Way F 0.64 Kaizen Series (GN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-64B (L-BU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I
3	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I
4	0.5	BU / YE	6105	High Speed GMLAN Serial Data [+] 2	I
5	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I
6	0.35	WH / BU	5986	Serial Data Communication Enable	I
7	0.5	BU	2500	High Speed GMLAN Serial Data [+] 1	I
8	0.5	WH	2501	High Speed GMLAN Serial Data [-] 1	I
9	0.5	BU / YE	6105	High Speed GMLAN Serial Data [+] 2	I
10	0.5	WH	6106	High Speed GMLAN Serial Data [-] 2	I
