Fastener Specifications

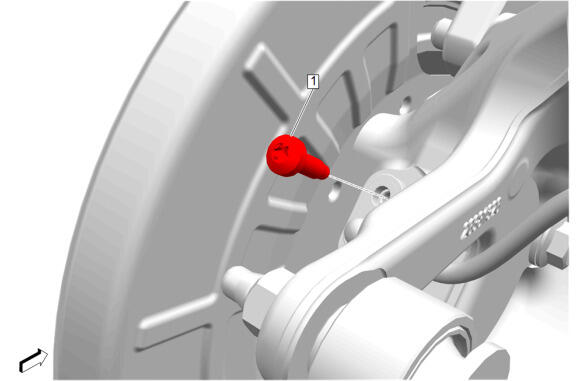

Front Wheel Speed Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Speed Sensor Bolt | - | - | 6 N. m (53 lb in) | Front Wheel Speed Sensor Replacement (Right) , or Front Wheel Speed Sensor Replacement (Left) |

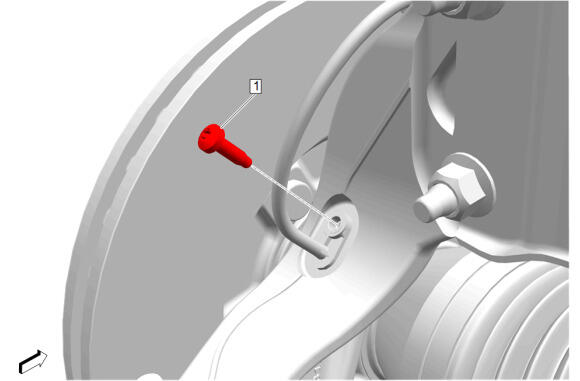

Rear Wheel Speed Sensor
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Speed Sensor Bolt | - | - | 6 N. m (53 lb in) | Rear Wheel Speed Sensor Replacement |
