Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

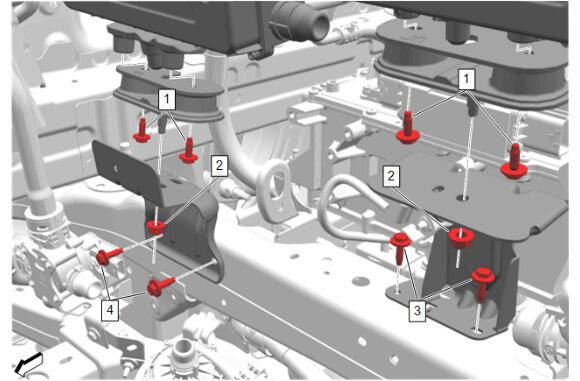

Battery Charger Control Module 2 Lower Adapter and Bracket Bolts and Nuts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bolt [4x] | - | - | 9 N.m (80 lb in) | Battery Charger Replacement - Battery Charger Control Module 2 |
| 2 | Drive Motor Battery Charger Bracket Nut [2x] | - | - | 22 N.m (16 lb ft) | Battery Charger Replacement - Battery Charger Control Module 2 |
| 3 | Drive Motor Battery Charger Bracket Bolt - Left Side [2x] | - | - | 9 N.m (80 lb in) | Drive Motor Battery Charger Bracket Replacement - Lower Left |
| 4 | Drive Motor Battery Charger Bracket Bolt - Right Side [2x] | - | - | 9 N.m (80 lb in) | Drive Motor Battery Charger Bracket Replacement - Lower Right |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Battery Charger Control Module 2 Upper Bracket Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Bolt [2x] | - | - | 9 N.m (80 lb in) | Drive Motor Battery Charger Bracket Replacement - Upper |
| 2 | Drive Motor Battery Charger Bracket Bolt [2x] | - | - | 22 N.m (16 lb ft) | Drive Motor Battery Charger Bracket Replacement - Upper |
NOTE:
Callout items in the following chart represent components shown in graphic above.

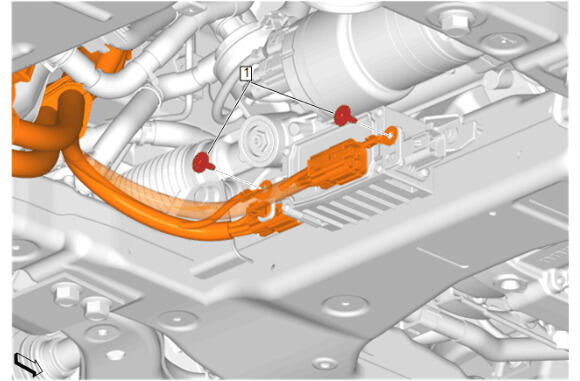

Battery Charger Coupler Bolts @ Battery Charger Coupler Fuse Block
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Bolt [2x] | - | - | 11 N.m (97 lb in) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
NOTE:
Callout items in the following chart represent components shown in graphic above.
Battery Charger Coupler Bolts @ Wheelhouse
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Hinge Pillar Brace Bolt [4x] | - | - | 22 N.m (16 lb ft) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
| 2 | Drive Motor Battery Charger Receptacle Bolt | - | - | 22 N.m (16 lb ft) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
| 3 | Drive Motor Battery Charger Receptacle Bolt [2x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

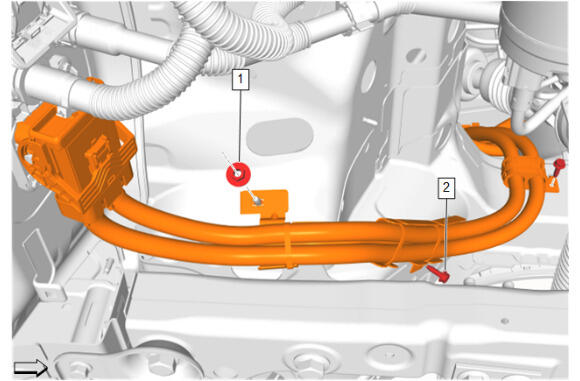

Battery Charger Coupler Bolts and Nut @ Frame
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Receptacle Nut | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
| 2 | Drive Motor Battery Charger Receptacle Bolt [2x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

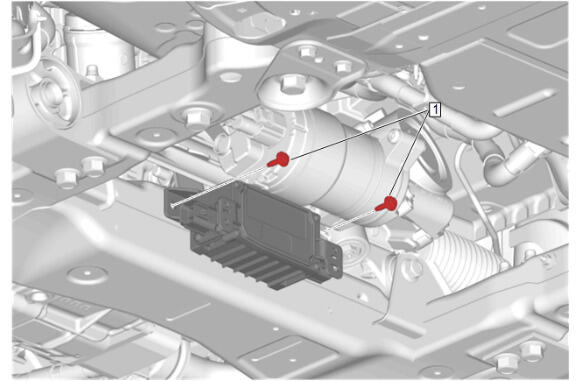

Battery Charger Coupler Fuse Block Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Generator Bolt [2x] | - | - | 9 N.m (80 lb in) | Battery Charger Coupler Fuse Block Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

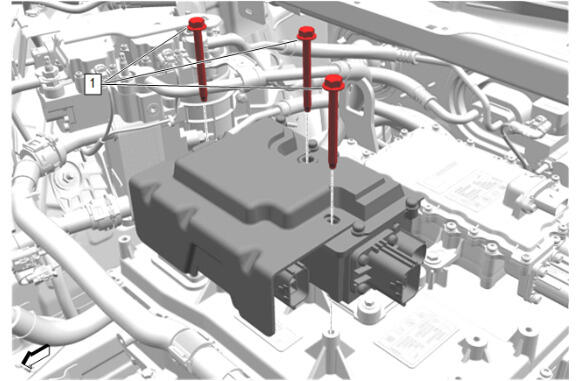

Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay Bolts
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Drive Motor Battery Charger Module Relay Bolt [3x] | - | - | 9 N.m (80 lb in) | Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay Replacement |
