Installation Procedure

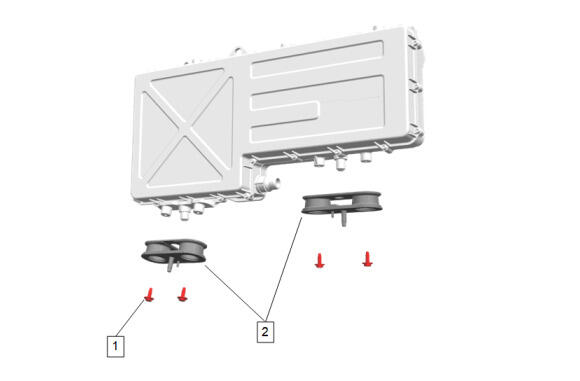

  1. GM6411160Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Adapter (2) - Install [2x]

    2. CAUTION:

    Refer to Fastener Caution

  2. Drive Motor Battery Charger Bolt (1) - Install and tighten [4x] - Fastener Specifications

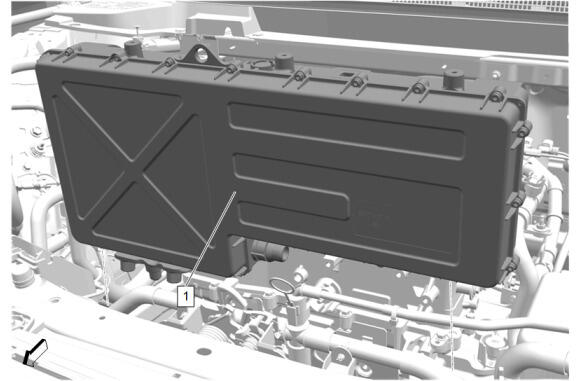

  3. GM6410442Courtesy of GENERAL MOTORS COMPANY

    Battery Charger (1) - Install

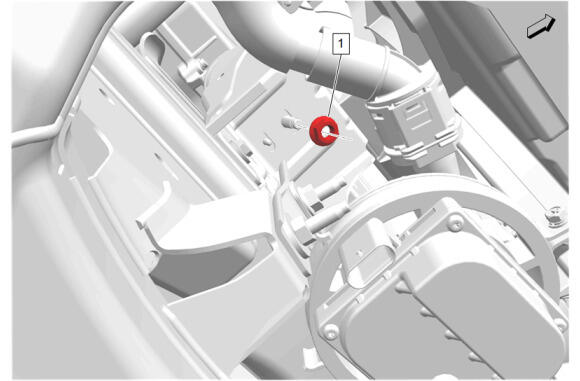

  4. GM6410441Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket Nut - Right Side (1) - Install and tighten - Fastener Specifications

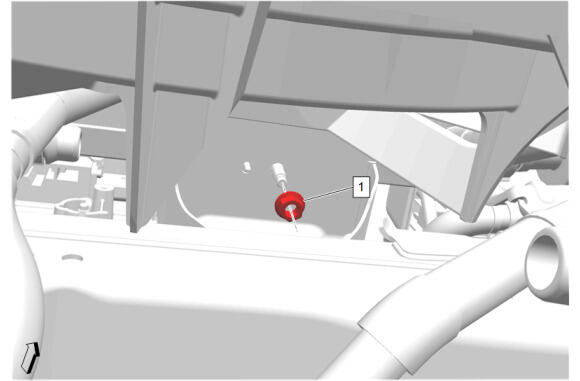

  5. GM6410440Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket Nut - Left Side (1) - Install and tighten - Fastener Specifications

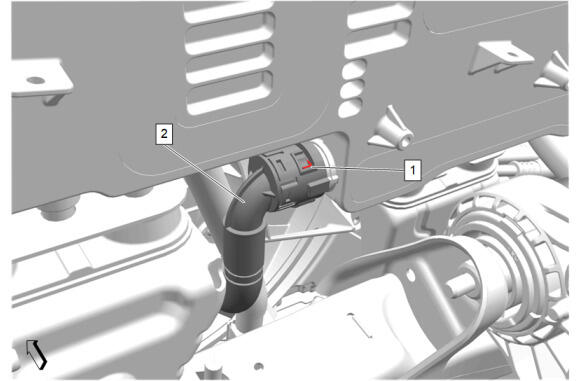

  6. GM6410438Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Inlet Hose (2) @ Battery Charger - Install

  7. Retainer (1) - Install

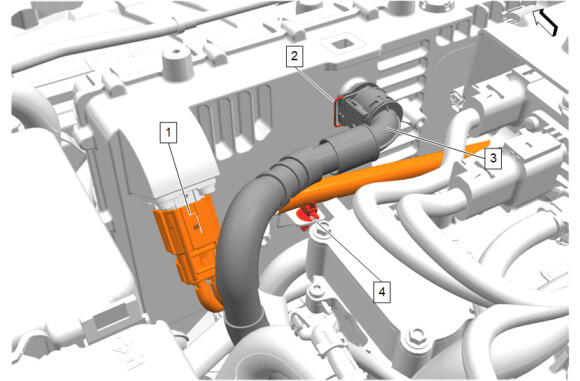

  8. GM6410437Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle Coolant Outlet Hose (3) @ Battery Charger - Install

  9. Retainer (2) - Install
  10. Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (1, 4) High Voltage Connectors

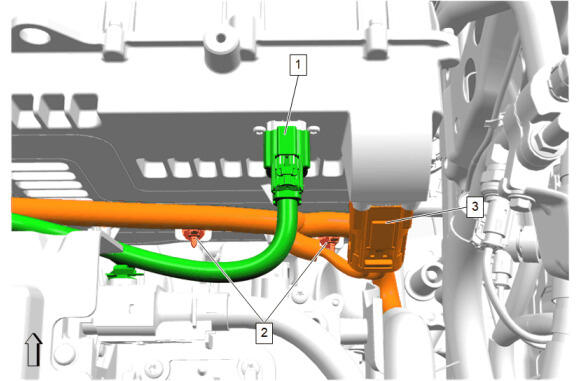

  11. GM6410436Courtesy of GENERAL MOTORS COMPANY

    Connect the high voltage electrical connector and install the wiring harness retainers as necessary. (2, 3) High Voltage Connectors

  12. Electrical Connector (1) - Connect

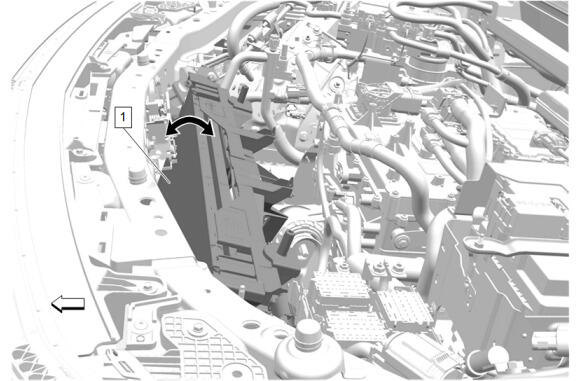

  13. GM6396407Courtesy of GENERAL MOTORS COMPANY

    Position the condenser fan and radiator assembly (1) forward.

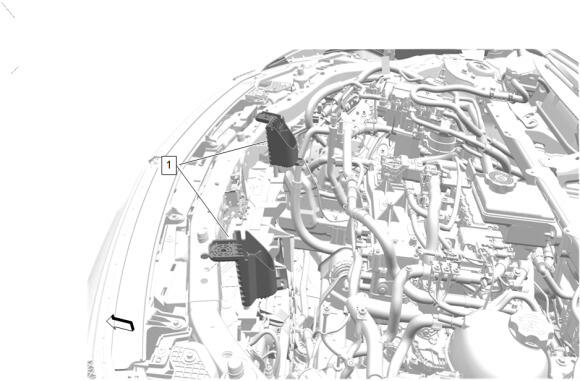

  14. GM6396425Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Left Side and Right Side (2) - Install [2x]

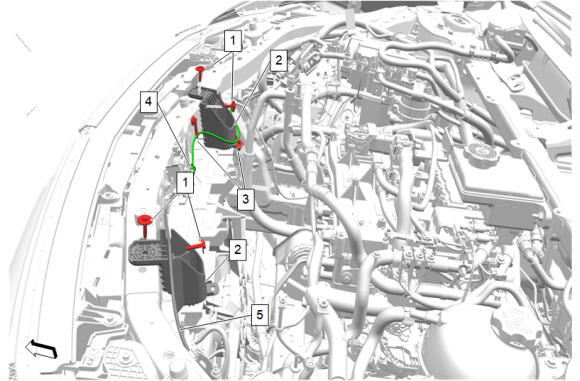

  15. GM6396424Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

  16. Reposition the hood release cable into place on the left-side radiator upper bracket. (5)
  17. Connect the electrical connectors and install the wiring harness retainers as necessary. (3, 4)

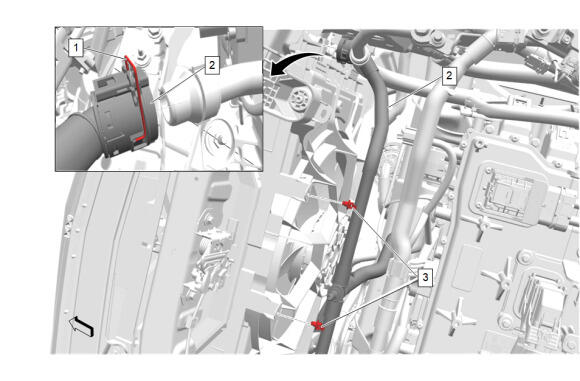

  18. GM6395958Courtesy of GENERAL MOTORS COMPANY

    Hose Clip (3) - Install [2x]

  19. Retainer (1) - Engage

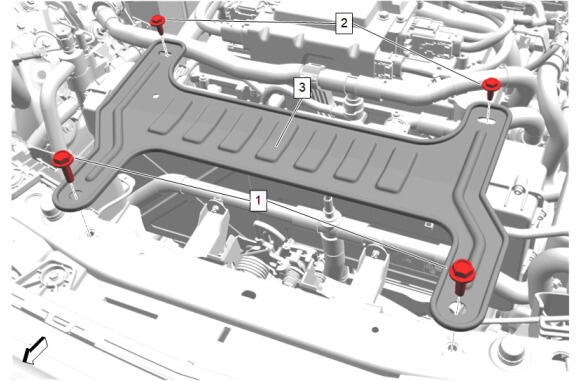

  20. GM6410435Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Bracket (3) - Install

  21. Drive Motor Battery Charger Bolt (2) - Install and tighten [2x] - Fastener Specifications
  22. Drive Motor Battery Charger Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  23. Fill the cooling system to the proper level. Drive Motor Battery Cooling System Draining and Filling
  24. Enable the high voltage system. High Voltage Enabling
