Shift Lock Control Wiring Schematics
›

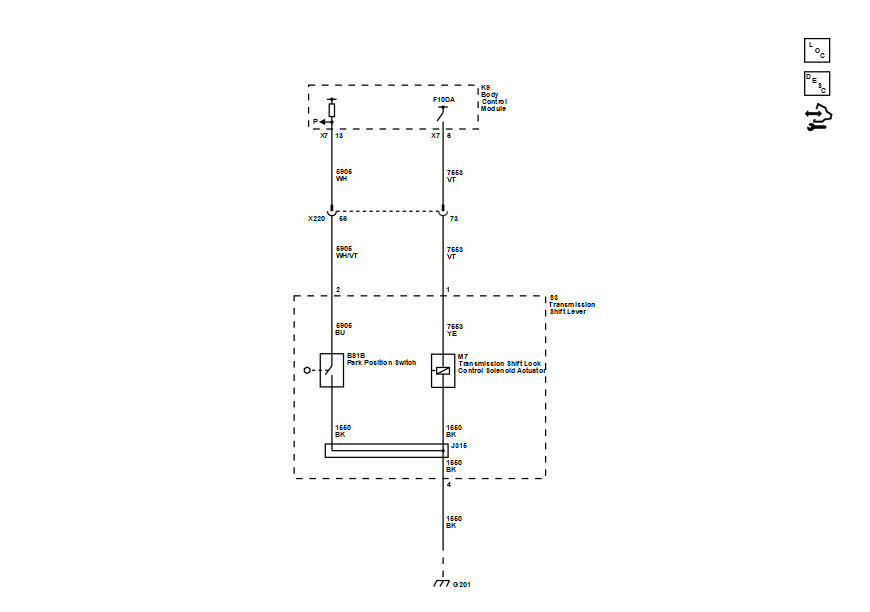

Shift Lock Control and Park Position Switch
Shift Lock Control and Park Position Switch
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
