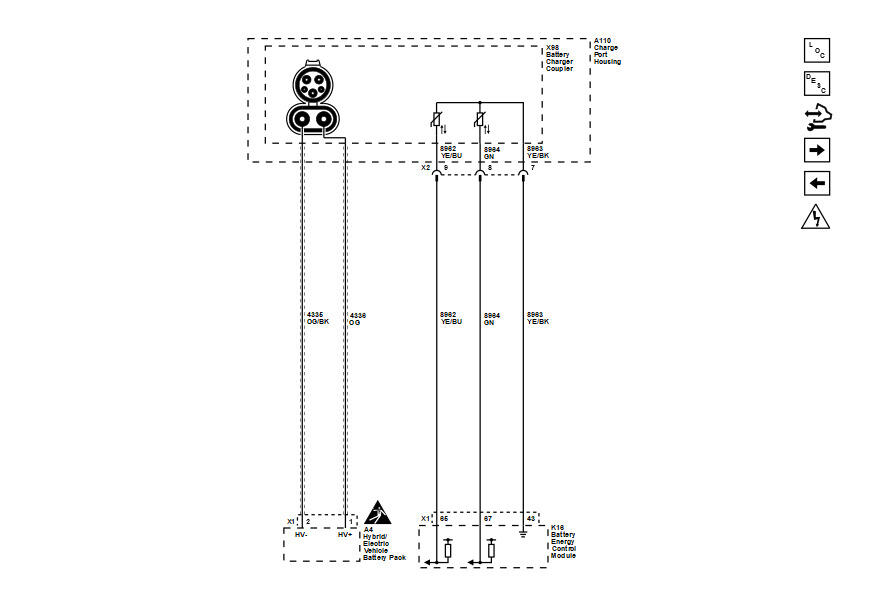

Home › Chevrolet › 2025 › Silverado EV RST › Repair and Diagnosis › Electrical › Charging Systems › Plug-In Charging › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › DC Power - Battery Charging
