Silverado EV RST
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Plug-In Charging
›
Schematic Wiring Diagrams
›
Plug-In Charging Wiring Schematics
›

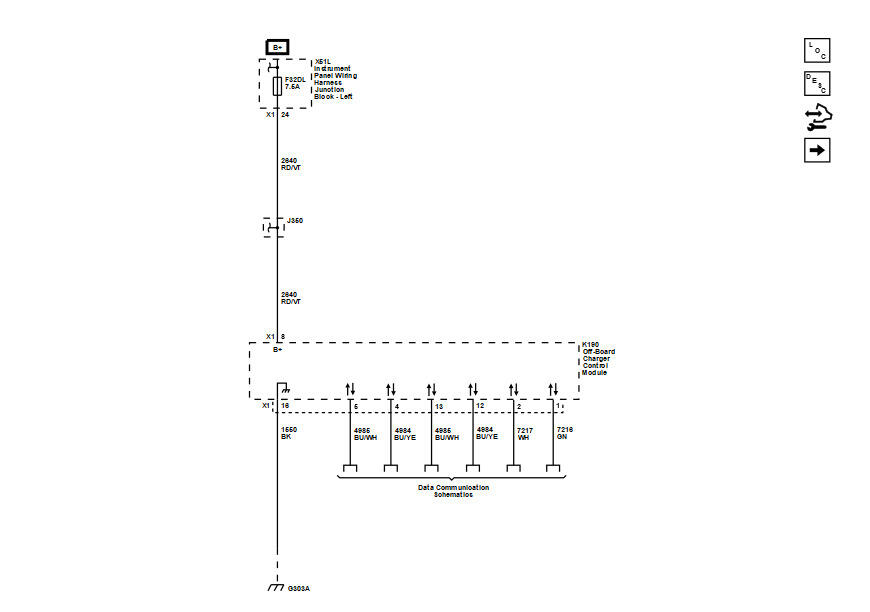

Off-Board Charger Control Module, Power, Ground, and Serial Data (UED)
Off-Board Charger Control Module, Power, Ground, and Serial Data (UED)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
