Fastener Specifications

GM5834992Courtesy of GENERAL MOTORS COMPANY
Intermediate Steering Shaft

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Seal Nut [3x] - - 9 N.m (80 lb in) Intermediate Steering Shaft Boot Replacement
2 Mid Intermediate Steering Shaft Bolt - - 58 N.m (43 lb ft) Intermediate Steering Shaft Replacement
3 Intermediate Steering Shaft Lower Bolt - - 50 N.m (37 lb ft) Intermediate Steering Shaft Replacement
GM5834995Courtesy of GENERAL MOTORS COMPANY
Steering Column

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - Steering Column Nut Sequence  Steering Column Replacement
2 Upper Intermediate Steering Shaft Bolt - - 45 N.m (33 lb ft) Upper Intermediate Steering Shaft Replacement
GM5845808Courtesy of GENERAL MOTORS COMPANY
Steering Column Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Bracket Bolt [2x] - - 8 N.m (71 lb in) Steering Column Tilt Wheel Actuator Motor Replacement
2 Steering Column Telescope Actuator Bolt [2x] - Yes 14 N.m (124 lb in) Steering Column Telescope Actuator Motor Replacement
3 Steering Column Tilt Wheel Actuator Bolt [2x] - Yes 14 N.m (124 lb in) Steering Column Tilt Wheel Actuator Motor Replacement
4 Steering Column Control Module Bracket Bolt [2x] - - 4.5 N.m (40 lb in) Steering Column Control Module Replacement

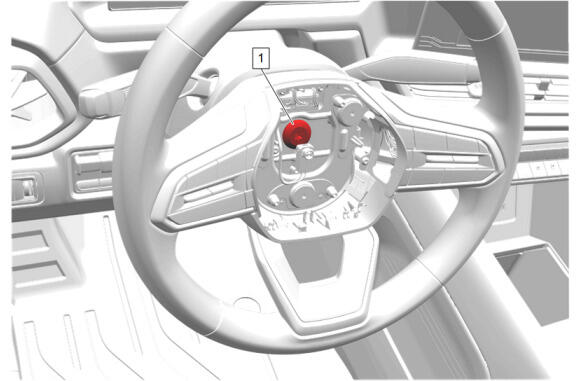

GM6294611Courtesy of GENERAL MOTORS COMPANY
Steering Wheel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Bolt - Yes 45 N.m (33 lb ft) Steering Wheel Replacement

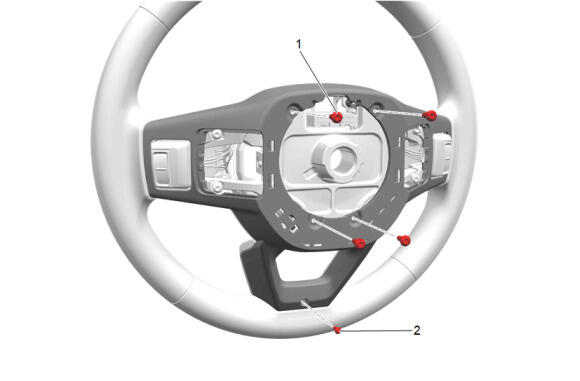

GM6295082Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Shroud

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt [4x] - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement
2 Steering Wheel Spoke Cover Bolt - - 1 N.m (9 lb in) Steering Wheel Shroud Replacement

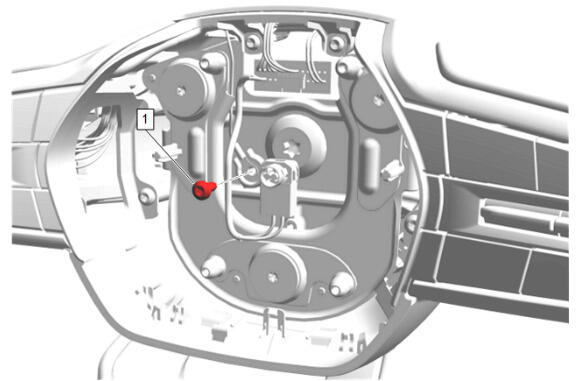

GM6388716Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Spoke Cover Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Wheel Spoke Cover Bolt - - 1 N.m (9 lb in) Steering Wheel Trim Spoke Cover Applique Replacement

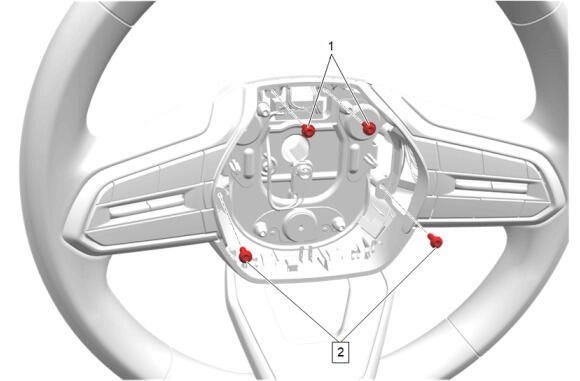

GM6339918Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Trim Spoke Cover Applique

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Cruise Control Switch Bolt [2x] - - 0.4 N.m (4 lb in) Steering Wheel Trim Spoke Cover Applique Replacement
2 Steering Wheel Spoke Cover Bolt [2x] - - 1 N.m (9 lb in) Steering Wheel Trim Spoke Cover Applique Replacement

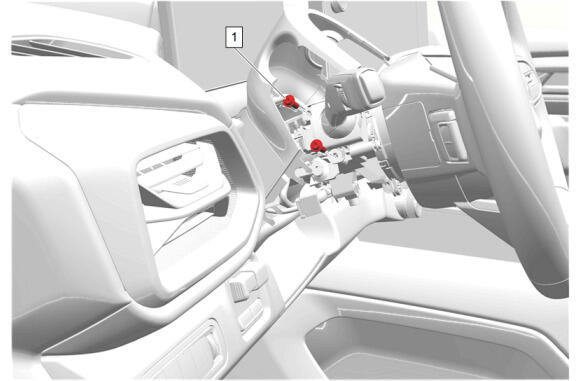

GM6304487Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turn Signal Switch Bolt [2x] - - 3.3 N.m (29 lb in) Turn Signal Switch Replacement

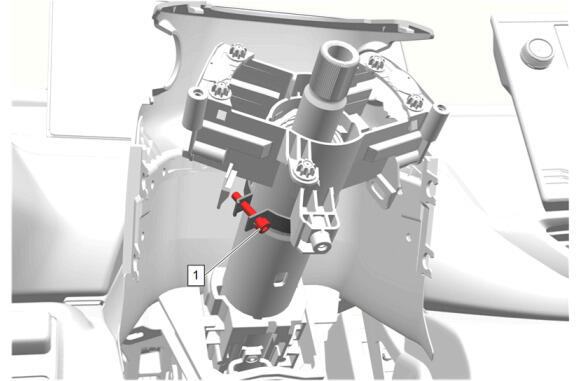

GM6331670Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turn Signal Switch Bracket Band Clamp - - 5 N.m (44 lb in) Turn Signal Switch Bracket Replacement
Steering Column Nut Sequence
GM5834910Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Steering Column Nut [4x] - - 22 N.m (16 lb ft) Steering Column Replacement
