Installation Procedure

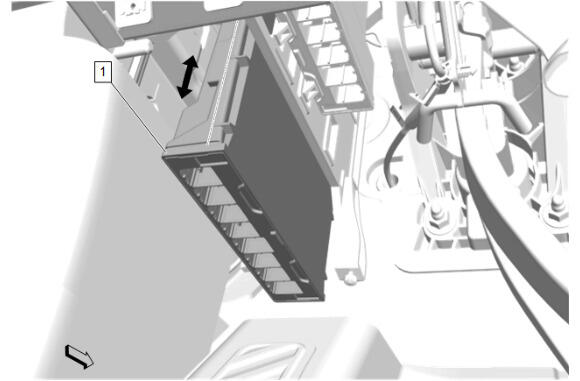

  1. GM6719313Courtesy of GENERAL MOTORS COMPANY

    Body Control Module (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connectors.
  4. GM5515685Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  5. GM5515684Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Install [2x]

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (9C1 / 5W4) , or Battery Negative Cable Disconnection and Connection (KL9)
  7. Perform the necessary programming and setup procedure:Control Module References
