Installation Procedure

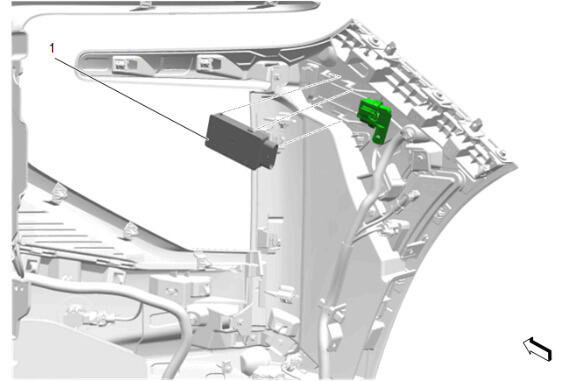

UHF Low Energy Remote Control Access Sensor Transceiver - Position 1 (1) - Install
- Secure the retaining tabs.
- Connect the electrical connector.

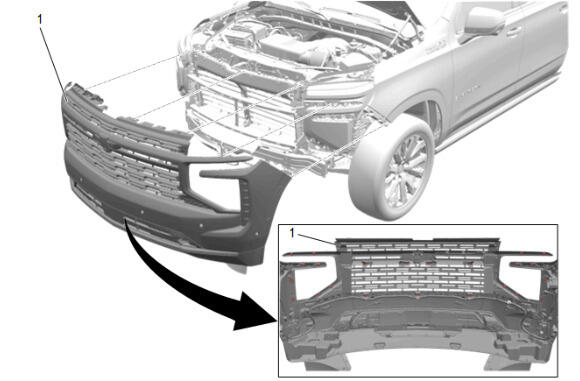

With the aid of an assistant, install the fascia. (1) - Front Bumper Fascia Removal and Installation (- G0Q) , or Front Bumper Fascia Removal and Installation (G0Q)
- Perform the necessary programming and setup procedure: Digital Key Sensor Position Learn
