Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Airbag Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to separate the steering wheel airbag plate from the steering wheel horn plate. (1, 2)
Courtesy of GENERAL MOTORS COMPANY

Pull the steering wheel airbag away from the steering wheel to expose the electrical connectors.
Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Steering Wheel Airbag (1) - Remove
Courtesy of GENERAL MOTORS COMPANY
CAUTION:
During steering wheel bolt removal, observe the following precautions:
- Do NOT use heat on the steering wheel bolt, steering wheel, or steering column. Using heat could cause damage to the steering related components.
- Do NOT hammer or apply excessive downward force on the steering wheel bolt, steering wheel, or steering column. Hammering or applying excessive downward force could cause damage to the steering related components.
NOTE:
- Steering wheel bolts installed during manufacturing require high torque efforts to remove.
- The ONLY acceptable bit for removing and installing the steering wheel bolt is a T50 Torx bit. Do NOT use any other size bit or a worn bit.
- If a power tool is used to remove the steering wheel bolt, the tool must have a minimum torque rating greater than 75 N.m (55 lb ft) and both the power tool and the T50 Torx bit MUST be positioned perpendicular to the bolt recess.
- Apply appropriate downward force to maintain engagement of bit to bolt recess during bolt removal.

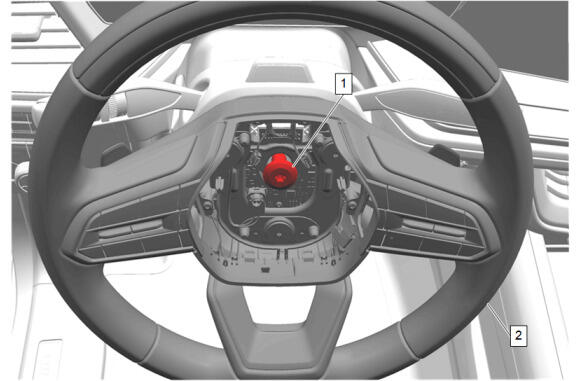

Loosen the steering wheel bolt (1) until 2 to 3 threads are still engaged.
Wiggle the steering wheel (2) until the wheel disengages completely.
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (1) - Remove
Disconnect the electrical connector.
Steering Wheel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

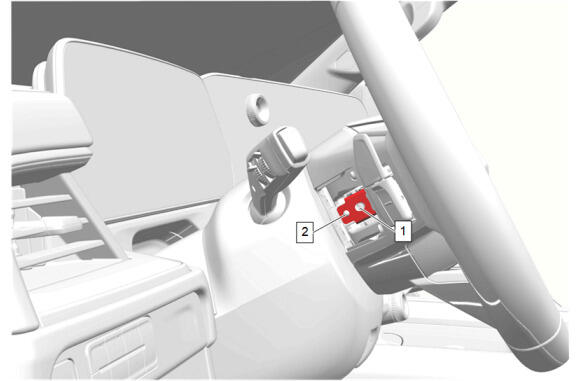

Steering Wheel Spoke Cover Bolt (1) @ Steering Wheel Shroud - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch Bolt (1) @ Steering Wheel Trim Spoke Cover Applique - Remove [2x]
Steering Wheel Spoke Cover Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors. (1)
Steering Wheel Trim Spoke Cover Applique (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch Bolt (1) @ Cruise Control Switch - Remove [2x]
Cruise Control Switch (2) - Remove
